Specifications:
Motherboard chip
Integrated chip sound card / network card
Main chipset Intel H61/H67 / Q67 series
Network card chip integrated RTL8105E 100M network card
Audio chip integrated 6-channel audio chip
Processor specification
CPU platform Intel Core 2nd and 3rd generations
CPU slot LGA 1155
Supports 1 CPU
Memory specifications
Memory type DDR3 1600 / 1333 / 1066 MHZ (up to 16GB)
Memory slot 2 x DDR3
Expansion slot
1xPCI-E X16 graphics slot
1x PCI-E X1 slot
1x USB2.0 pin
4xSATA2.0 interface
I / O interface
USB keyboard and mouse 1 each
1xRJ45 network interface
1x VGA interface
1xHDMI HD output
4xUSB 2.0 interface

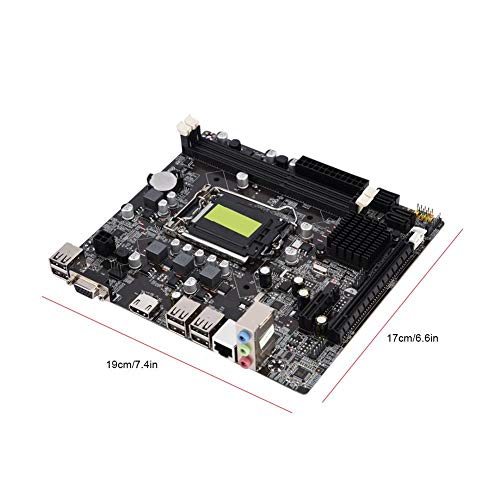

Board size：Approx.17 * 19CM / 6.6 * 7.4in
No box weight：0.38kg
Other parameters
Power socket A 4-pin, 24-pin power connector
Power mode 3 phase
Packing List:
1 * Motherboard
1 * SATA Cable
1 * Metal Back Shield (CPU, GPU, Memory are Not Included)
Make sure this fits by entering your model number.

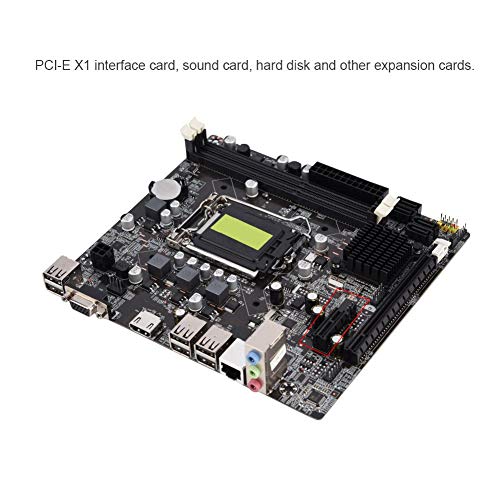

【Multi-Interface Supported】 H61 LGA 1155 motherboard supports DDR3 / Fast Ethernet / 4 USB2.0 / HDMI / VGA memory. PCI-E X1 interface card, sound card, hard drive and other expansion cards.

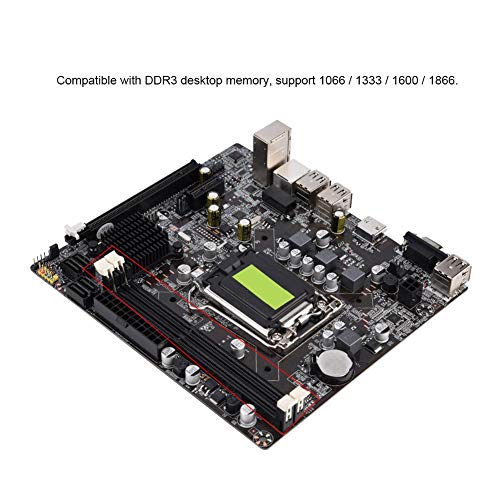

【DDR3 memory】 Compatible with DDR3 desktop memory, supporting 1066/1333/1600/1866 DDR3 desktop memory, supporting 1066/1333/1600/1866.

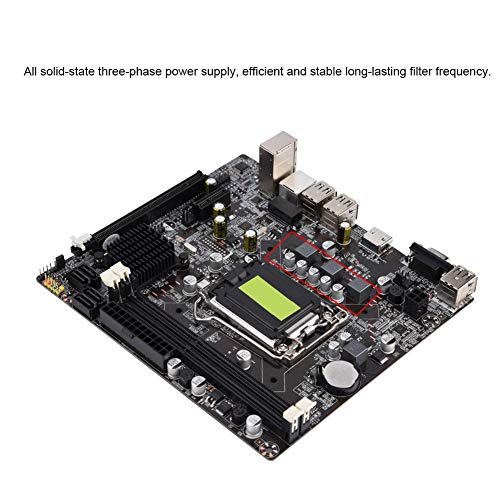

【Durable Supper】 Three-phase solid-state power supply, Power socket A 4-pin, 24-pin power connector efficient and stable long-life filter frequency.

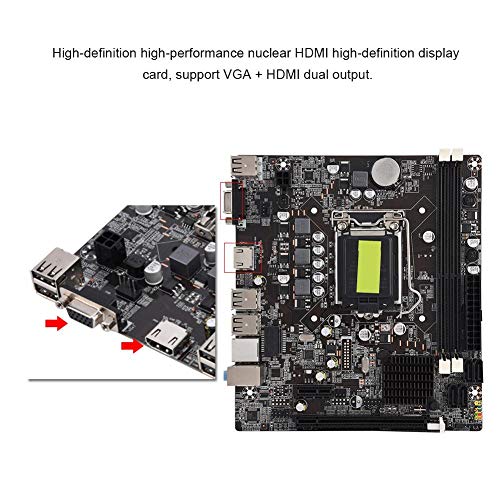

【Nuclear HD Graphics】 High-performance HDMI high-definition nuclear high-definition display card, support dual VGA + HDMI output.
【100% Guarantee】 Professional design, your best choice. If you have any questions about our products while using them, please feel free to contact our 24/7 customer service, we will provide a professional assistant for you.
