Important reminder:
The color of the slot bottom plate may be different for each batch. The product is continuously optimized and upgraded, and does not affect the normal performance of the product performance and function.

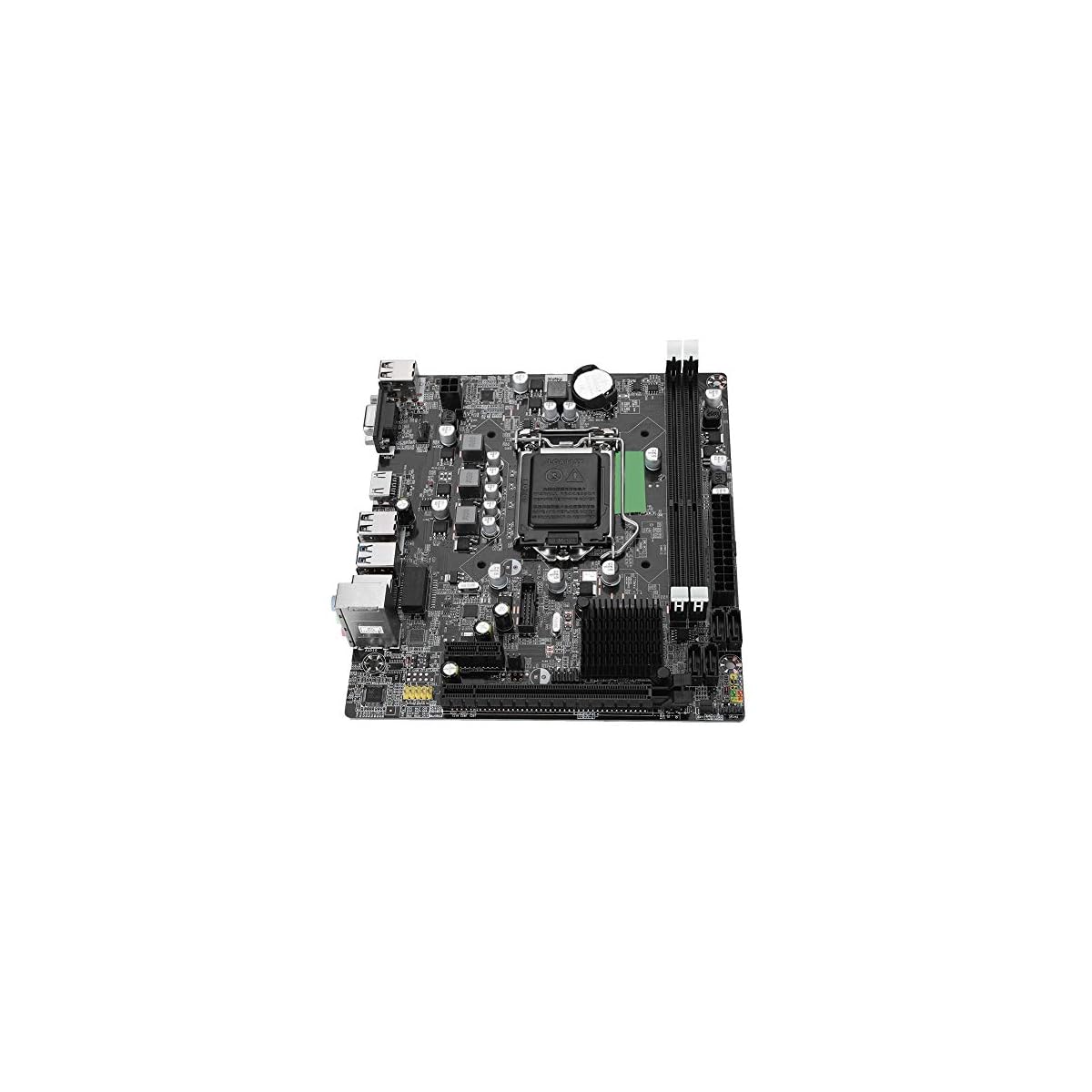

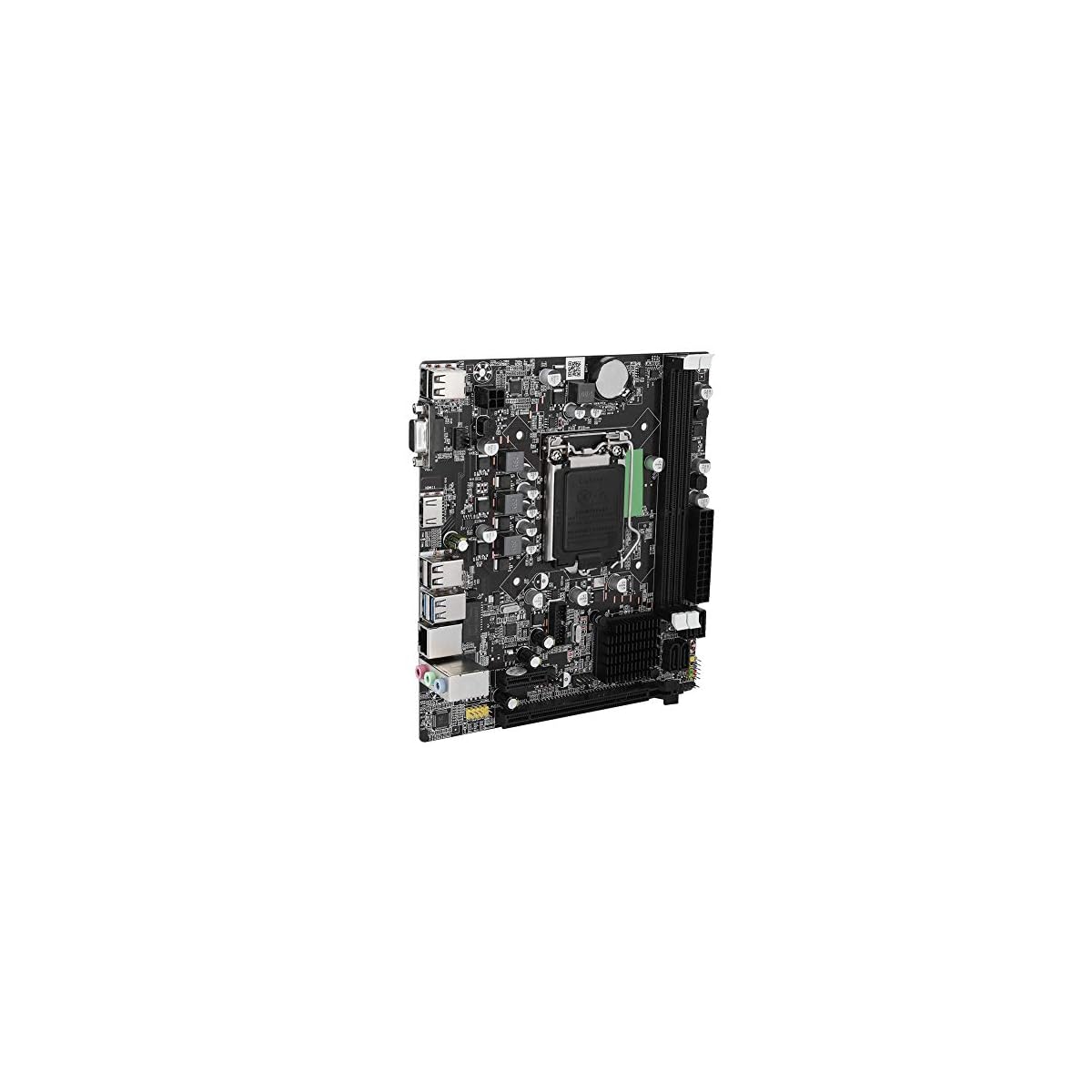

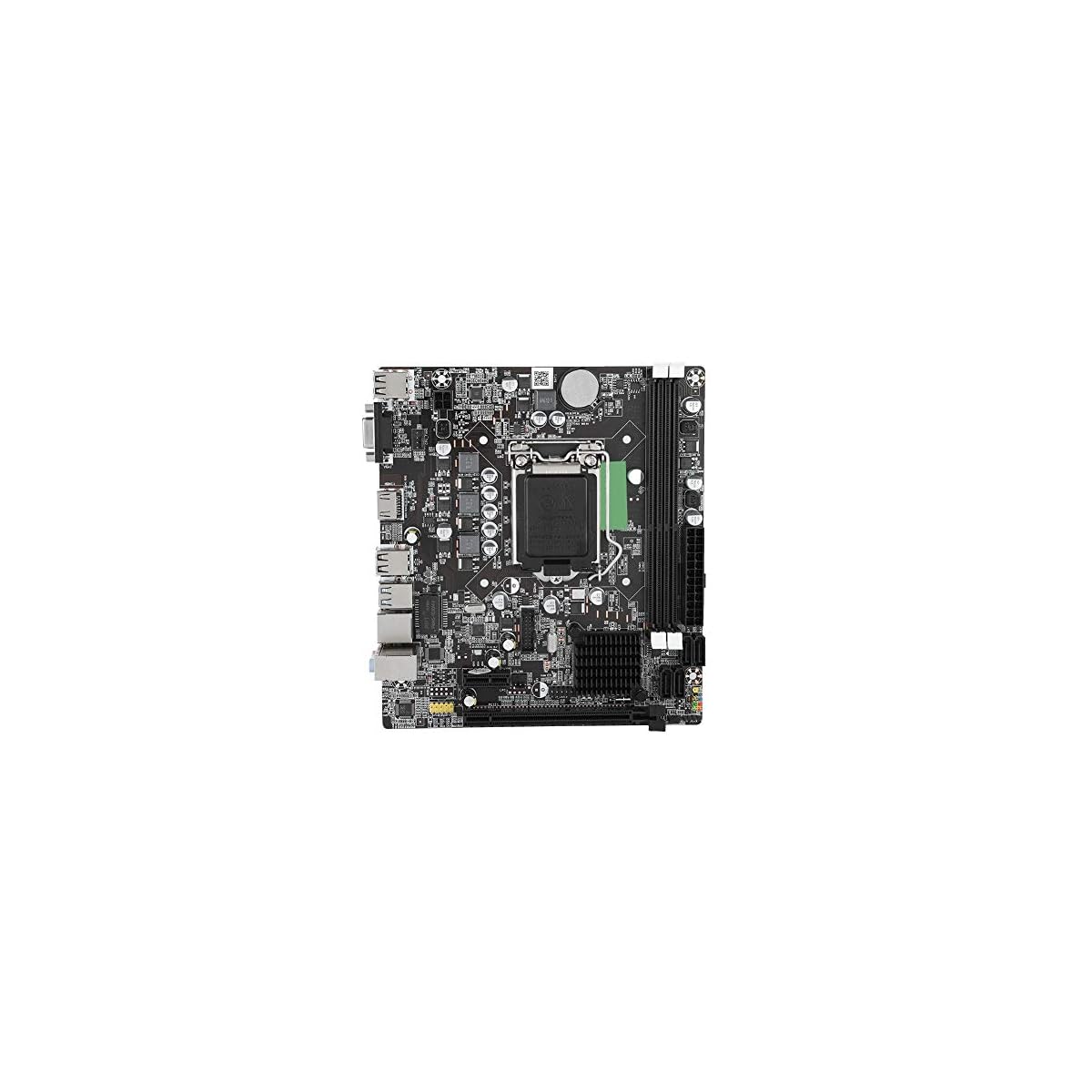

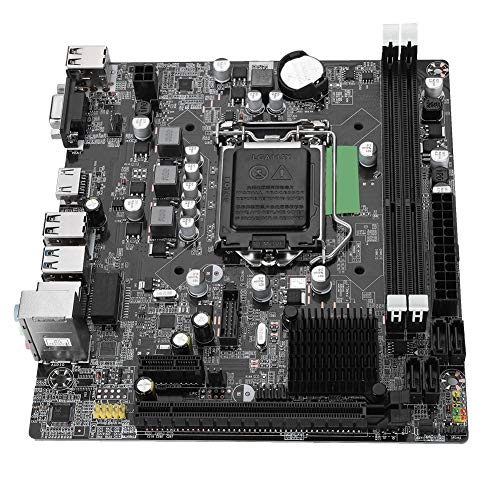

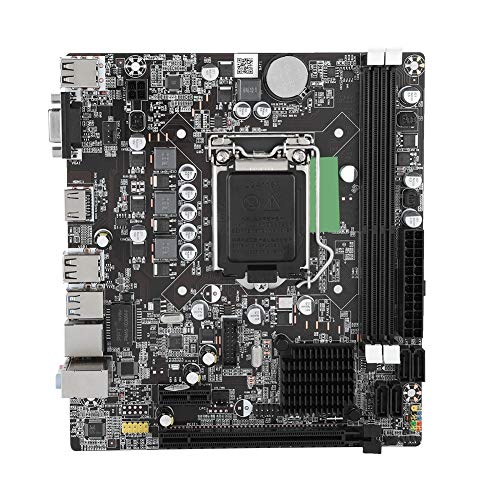

Specification:
Motherboard chip:
Integrated sound card / network card
Main chipset: for Intel B75 series
Audio chip: integrated 6-channel audio chip
NIC chip: integrated RTL8105E
Processor specifications:
CPU socket: LGA 1155
CPU type: i3 i5 and i7 series
Memory specifications:
Memory type: DDR3 1066/1333/1600MHz desktop memory
Memory slot: 2*DDR3 DIMM
Maximum memory support 8G*2
Expansion slot:
1*PCI-Ex16 graphics card slot
1*PCI-Ex1 slot
2*USB2.0 slot (1 set)
2*USB3.0 slot (1 set)
3*SATA2.0 interface
1*SATA3.0 interface
I/O interface:
USB universal interface
1*RJ45 network interface
2*USB2.0 interface
2*USB3.0 interface
Audio port
Other parameters:
Power connector 4 pin, a 24-pin power connector
Power supply mode 3 items
Size: 19 * 17 * 4cm / 7.5 * 6.7 * 1.6in
Weight: approx. 542g
Package list:
1 * Motherboard
1 * SATA cable
1 * Baffle
Make sure this fits by entering your model number.
This product is constantly being updated and iterated, so the slot, bottom plate color, etc. may be different from batch to batch, but it will not affect the normal use of product performance and functions. Adapt to most ITX cases, the board can be booted from USB, the main chipset adopts the Intel B75 series, and the motherboard has integrated 6-channel sound card and RTL8105E network card chip.
The CPU socket is LGA1155, and the CPU type supports i3, i5 and i7 series. The maximum memory supports two 8G memory, memory type DDR3 1066/1333/1600MHz desktop memory. The I/O connector has 1 USB keyboard and mouse universal interface, 1 RJ45 network interface, 1 audio interface, 2 USB2.0 interfaces and 2 USB3.0 interfaces.
The CPU socket is LGA1155, and the CPU type supports i3, i5 and i7 series. The maximum memory supports two 8G memory, memory type DDR3 1066/1333/1600MHz desktop memory. The I/O connector has 1 USB keyboard and mouse universal interface, 1 RJ45 network interface, 1 audio interface, 2 USB2.0 interfaces and 2 USB3.0 interfaces.
The expansion slot includes 1 PCI-E×16 graphics card slot, 1 PCI-E×1 slot, 2 USB2.0 slots (1 group), 2 USB3.0 slots (1 group) ), 3 SATA2.0 interfaces and 1 SATA3.0 interface.
Suggestion: It is best to be installed by professionals. When the motherboard is normally installed, there is no display, no boot, no picture, no network card, no sound card, etc., it is recommended that the customer restore the factory settings or find an eraser to wipe the memory CPU The golden finger of the graphics card (the part in contact with the motherboard) improves the contact environment.
