Features:
GDSTIME Unique Fan Design are Low Power Consumption, Highly Efficient Ventilation, Low Noise and Easy to Operation.
1. Applications:
The 9225 Fan Widely Used in Computer, CPU, Game Console, Power Supply, Inverters, Projectors, Welding Machines, Printing Equipment, Medical Instruments, Automotive Electronics, Industrial Keep an eye on Equipment, Household Appliances, Beauty Equipment or Quite a lot of Electronics and Components.
2. Operating Voltage Range:
That is 24volts Cooling Fan, the Operating Voltage Range is 14volts to 26volts.
*Kindly Reminder: When the Voltage Overtake to 26volts, it Can Also Work, But Not Protected, and Seriously Affects Lifespan of the Fan.

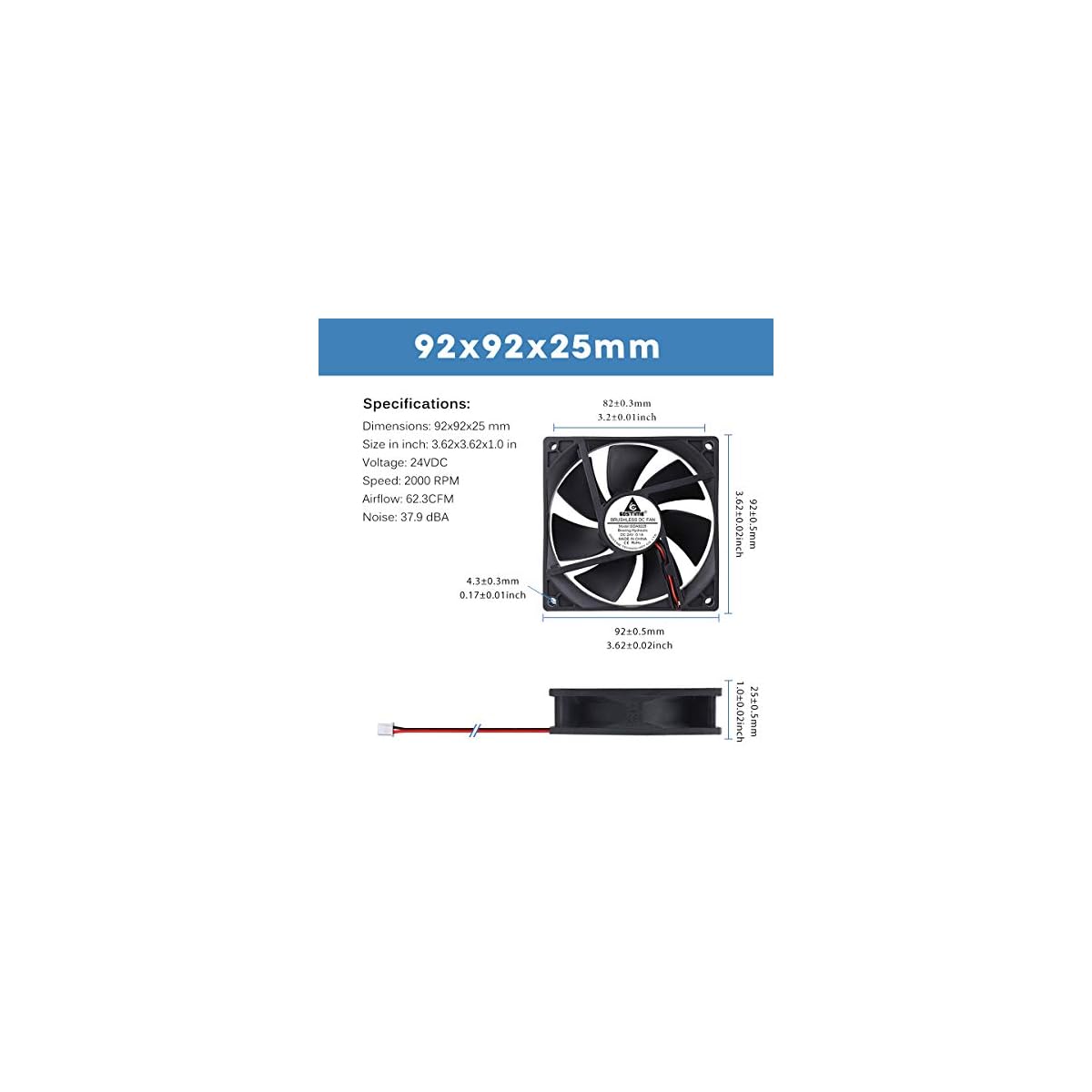

3. Dimensions:

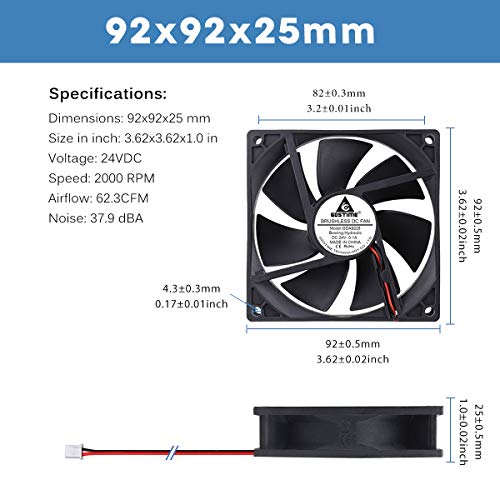

Outer Frame Dimension is 92mm x 92mm x 25mm / 3.62″x3.62″x0.98″ (LxWxH);
The Center to Center Distance Between the Mounting Holes is 82mm±0.3 / 3.22 inches

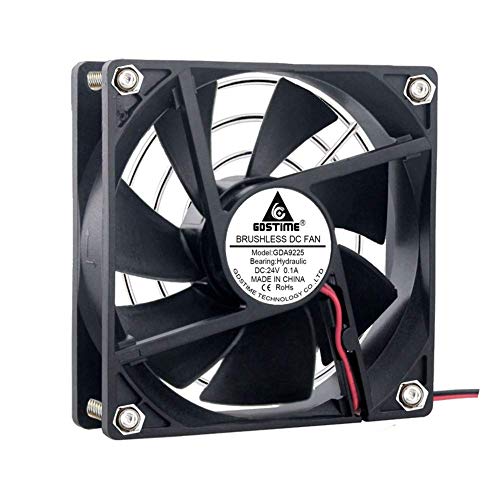

Product Parameter:
Bearing Type: Sleeve
Rated Voltage: DC 24V
Operating Voltage Range: 14V to 26V
Rated Current: 0.1Amp
Rated Power: 2.2 W
Rated Speed: 2000PRM
Noise Level: 37.9dBA
Fan Air Waft: 62.3CFM
Air Pressure: 0.21 In H₂O
Net Weight: 70g/2.47oz

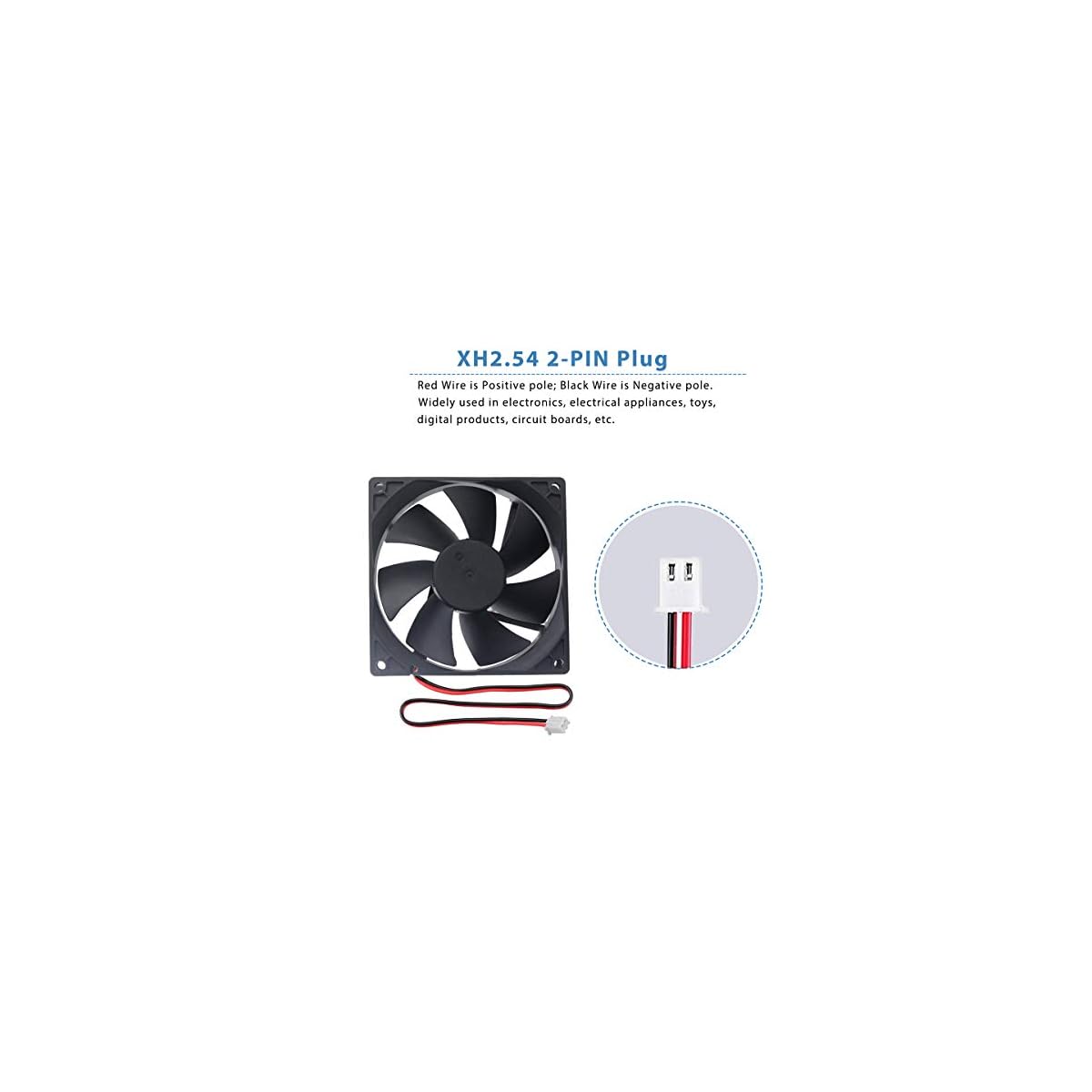

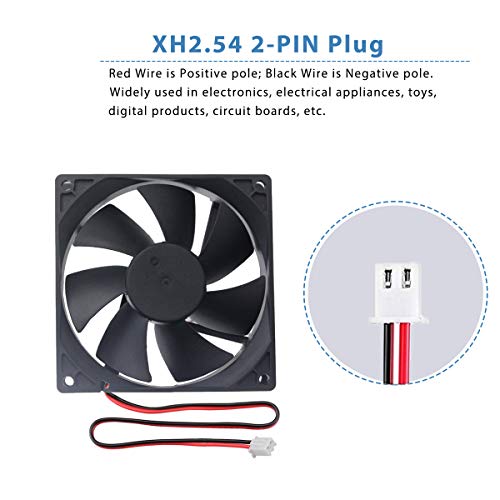

Connector: XH2.54-2Pin
Wire Length: 300mm/11.81inches
Storage Temperature: -40-80 ℃
Operating Temperature: -10-75 ℃
Life Expectancy: 35000H at 25degree test

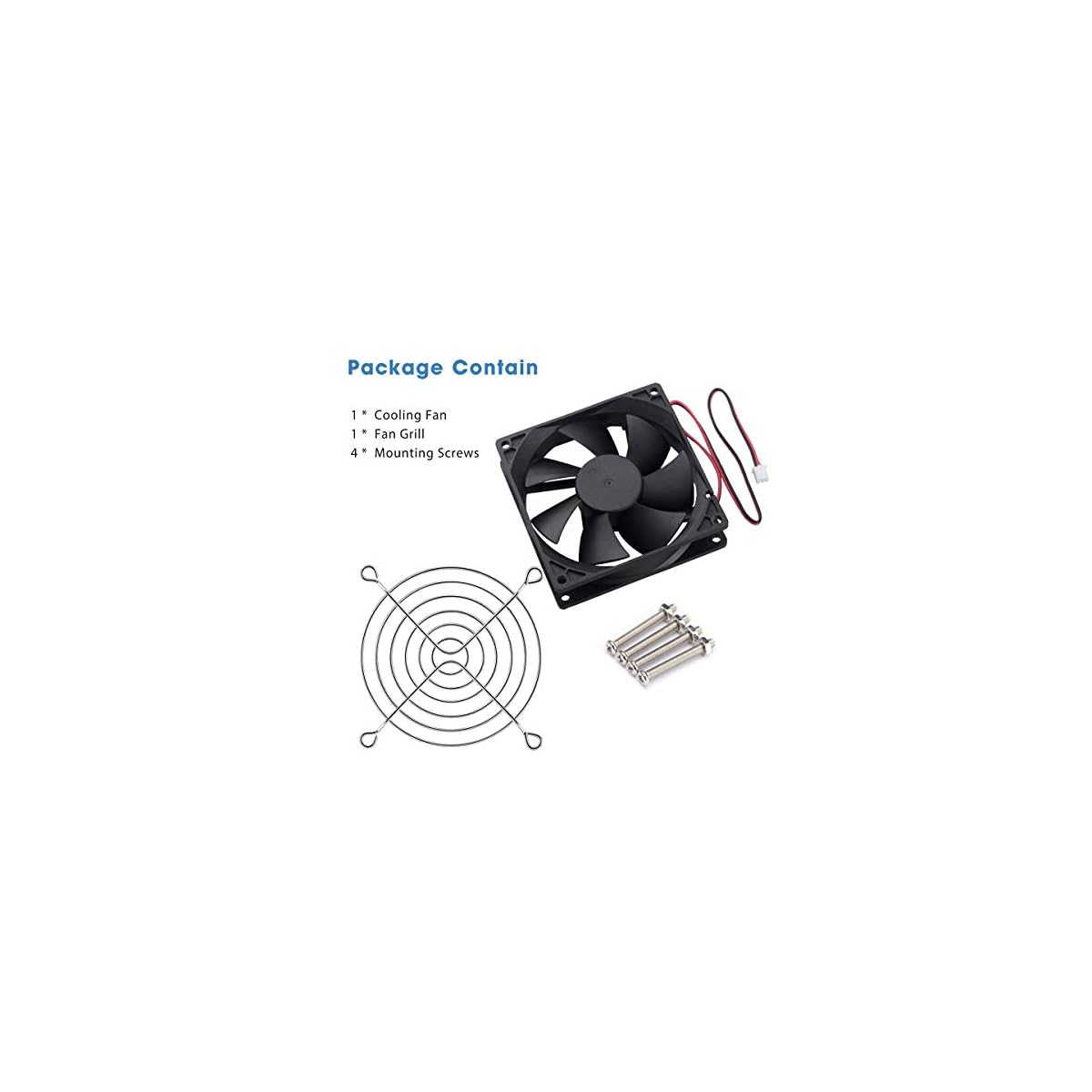

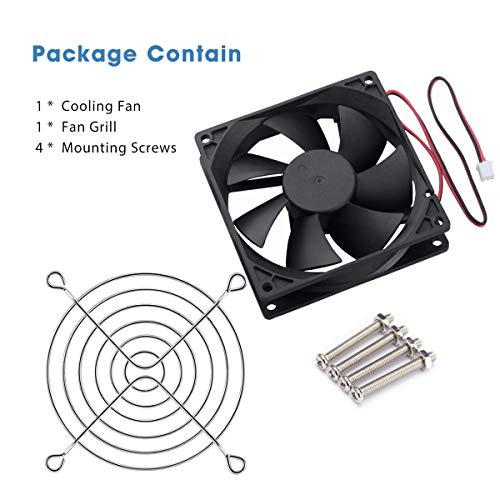

Packing Contain:
1* DC Fan (92x92x25mm)

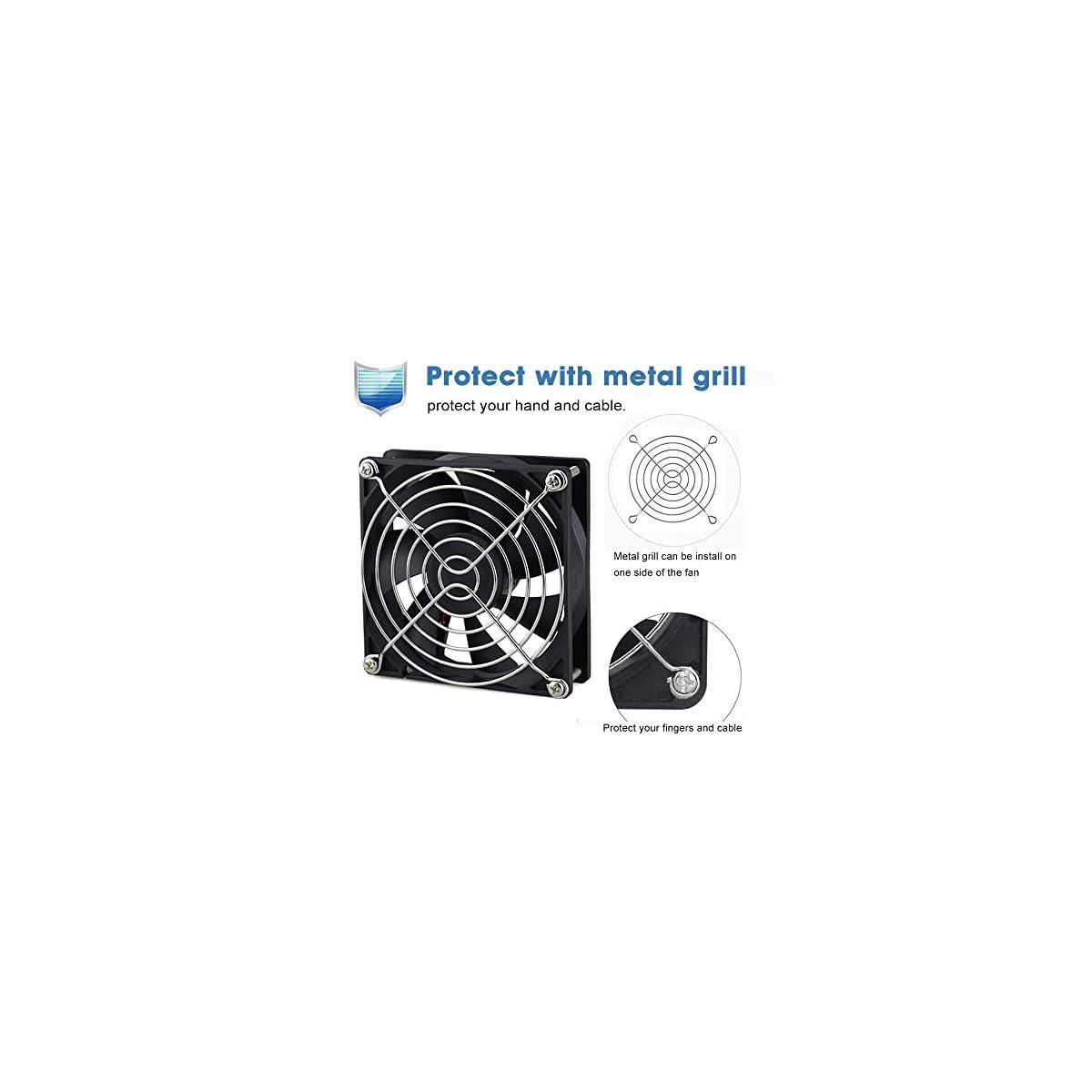

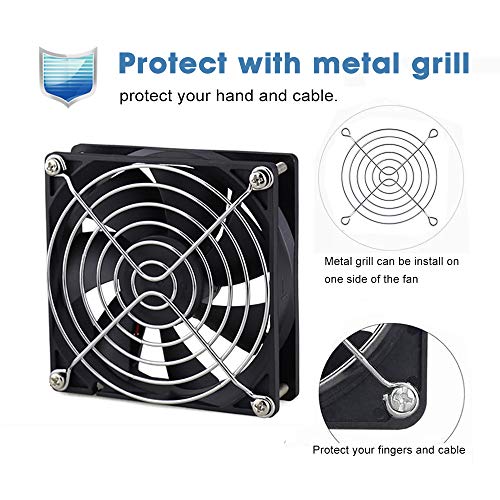

1* Fan Grill 90mm
4* Mounting Screws & Nuts
●In Order To Save Your Precious Time, Please Confirm The Fan Parameters Carefully Before Ordering, Such as Size, Voltage, Bearing Type and the like. Thank You!
Make sure this fits by entering your model number.
1* DC Fan; 1* Fan Grill; 4* Mounting Screws & Nuts; and Friendly Customer Service
Certified by CE, RoHS; Every Item Will be Tested Carefully and Packed Well by Professional
Up to 2000RPM; Airflow: 62.3CFM; Noise: 37.9dBA; Voltage: 24V DC; Current: 0.1Amp; The use of Sleeve Bearing
Give protection to Your Devices to Cool Down Usually and Work in Optimal Temperature; Ideal Replacement of Repair Cooling
Widely Used in Computer, CPU, Game Console, Power Supply, Inverters, Projectors, Automotive Electronics, Household Appliances, Beauty Equipment and the like.
