Product Features:

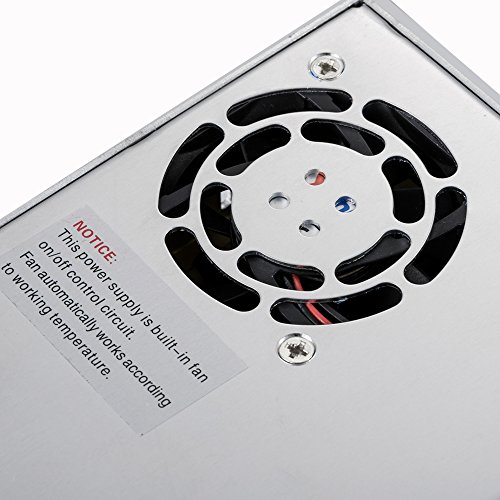

1. Auto on/off cooling fan
2.High efficiency Low temperature
3. Over Load and Short Circuit Protection Over Voltage Protection
4. Output: DC Voltage: 12V
5. Rated Current: 30A
6. Current Range: 0-30A
7. Rated Power: 360W Ripple & Noise (maximun): 150mV
8. Voltage Adjustable Range: 10-13.2V
9. Voltage Tolerance: +/- 2.0%
10. Line Regulation: +/- 0.5%
11. Load Regulation: +/- 0.5%
12. Setup, Upward thrust, Hold Up Time: 200ms, 50ms, 20ms at full load

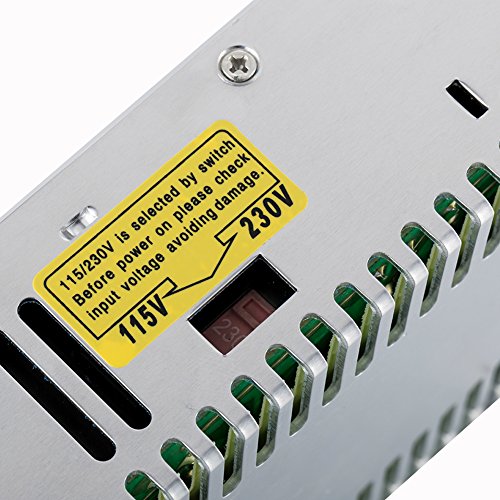

13. Input Voltage Range: 90-132V AC / 180-264V AC by Switch 248-370V DC
14. Frequency Range: 47-63Hz
15. Efficiency: 74%
16. AC Current: 6.5A/115V 4A/230V
14. Inrush Current: 25A/115V 50A/230V
15. Leakage Current:
Note:
This product is suitable for indoor use, non-detachable power shell. External power supply round hole mesh heat vents, within the range of 50cm throughout the outlet Don’t place other flammable items. 5 cm within the product range not place other items, to make certain that the facility supply has good thermal environment, to verify safety. Please appropriately calculate the weight power, Don’t overload. When the facility is working, Don’t touch the case. Don’t short-circuit output if no output, please use off one minute re-energized. Before electricity use, carefully verify the facility link is correct, rigorous power lines reversed. Professional installation of qualified electrician is highly really helpful.
