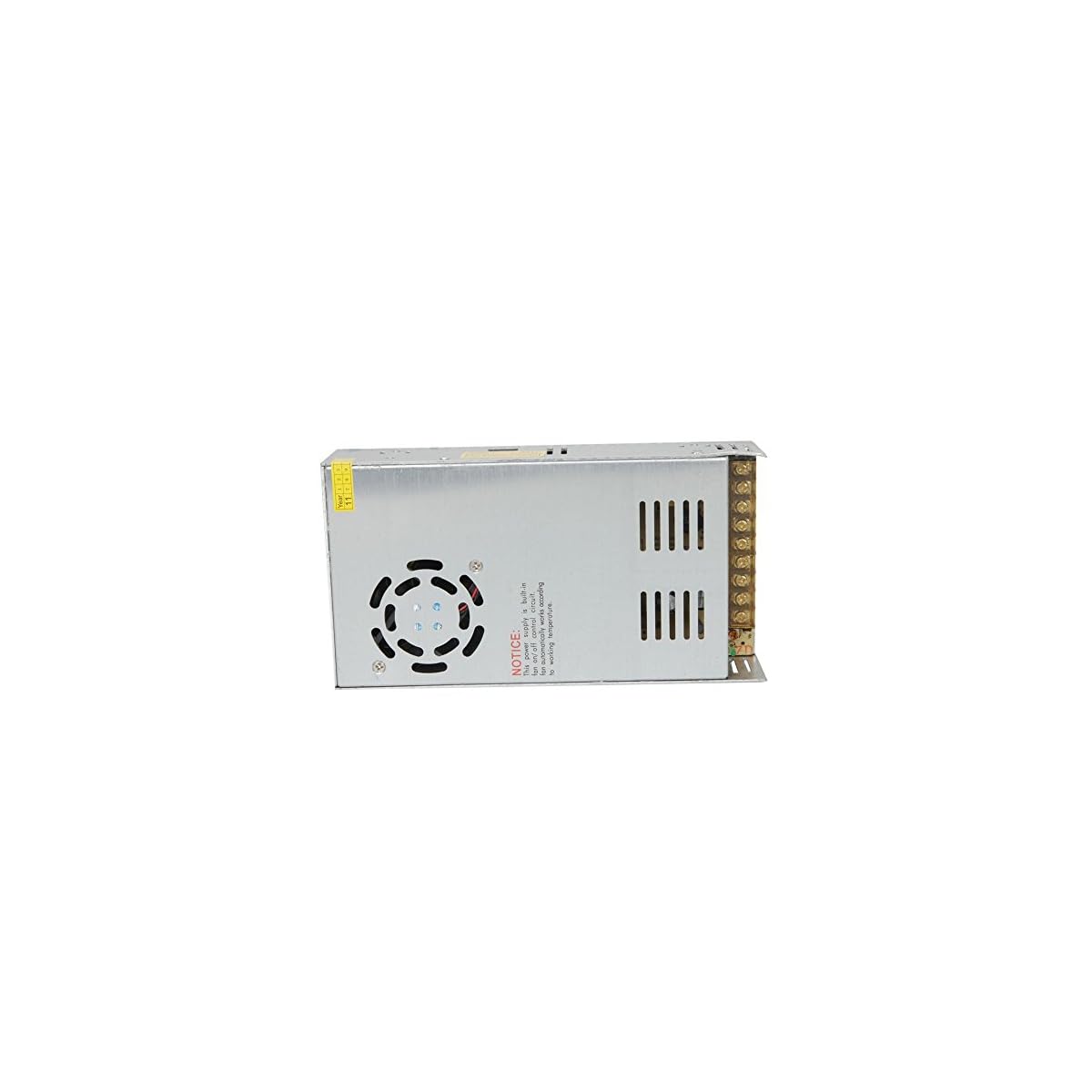

Product Features:

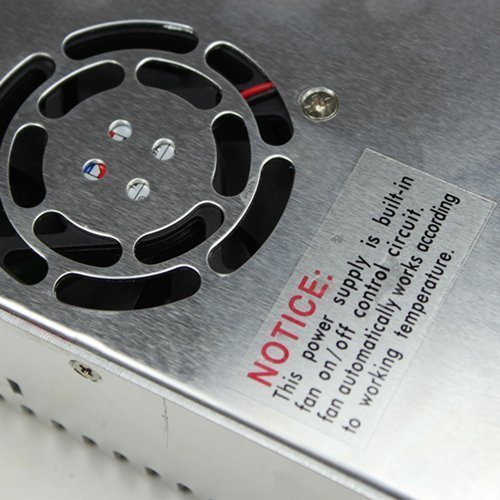

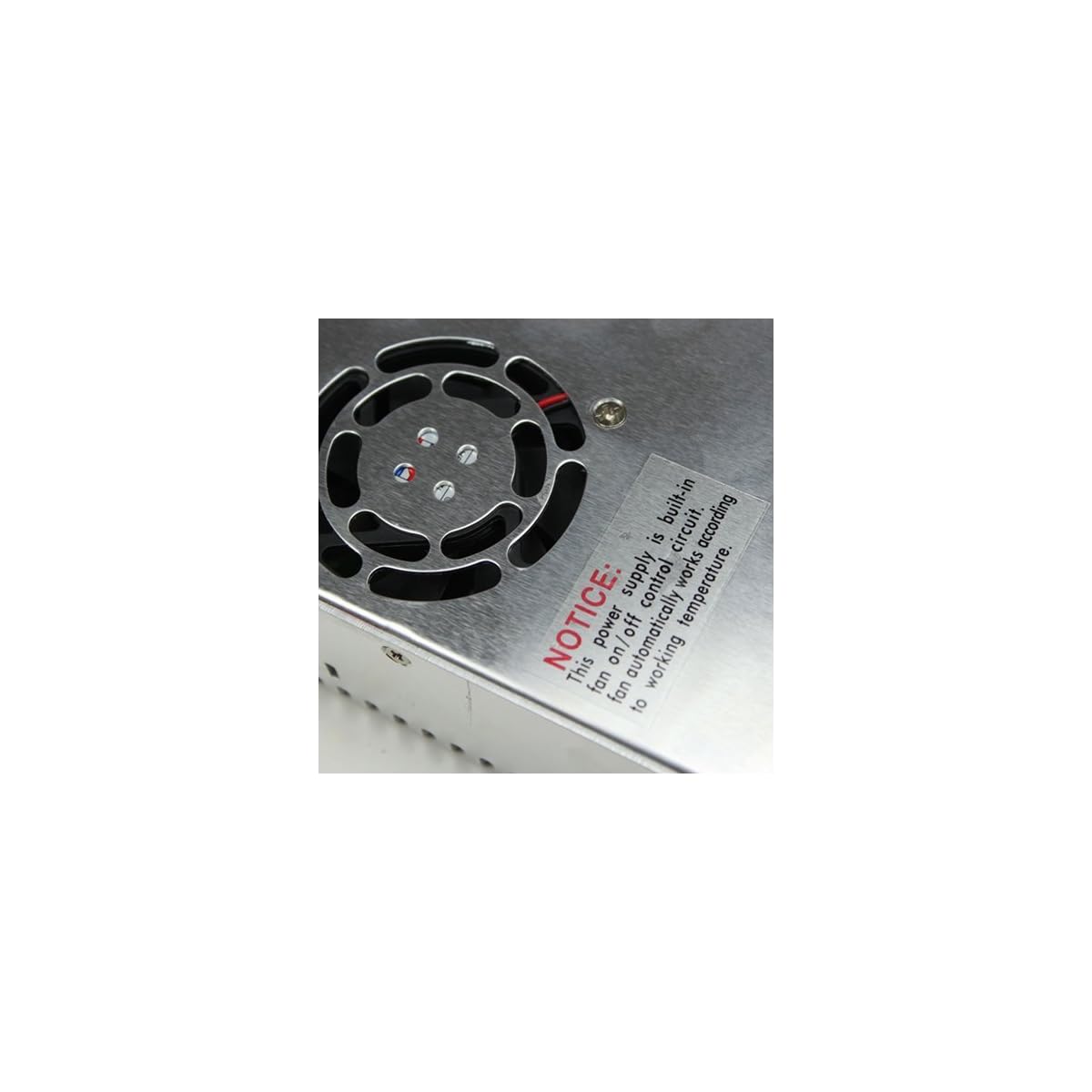

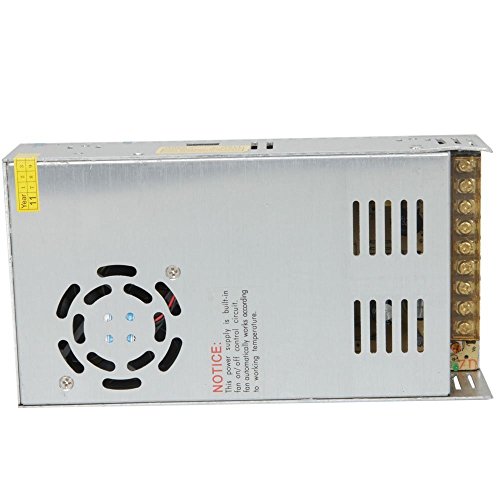

Auto on/off cooling fan
High efficiency
Low temperature
LED indicator for power on
Over Load and Short Circuit Protection
Over Voltage Protection
Output:
DC Voltage: 12V
Rated Current: 30A
Current Range: 0-30A
Rated Power: 360W
Ripple & Noise (maximun): 150mV
Voltage Adjustable Range: 10-13.2V
Voltage Tolerance: +/- 2.0%
Line Regulation: +/- 0.5%
Load Regulation: +/- 0.5%
Setup, Rise, Hold Up Time: 200ms, 50ms, 20ms at full load
Input:
Voltage Range: 90-132V AC / 180-264V AC by Switch 248-370V DC
Frequency Range: 47-63Hz
Efficiency: 74%
AC Current: 6.5A/115V 4A/230V
Inrush Current: 25A/115V 50A/230V
Leakage Current:
Note
This product is suitable for indoor use, non-detachable power shell.

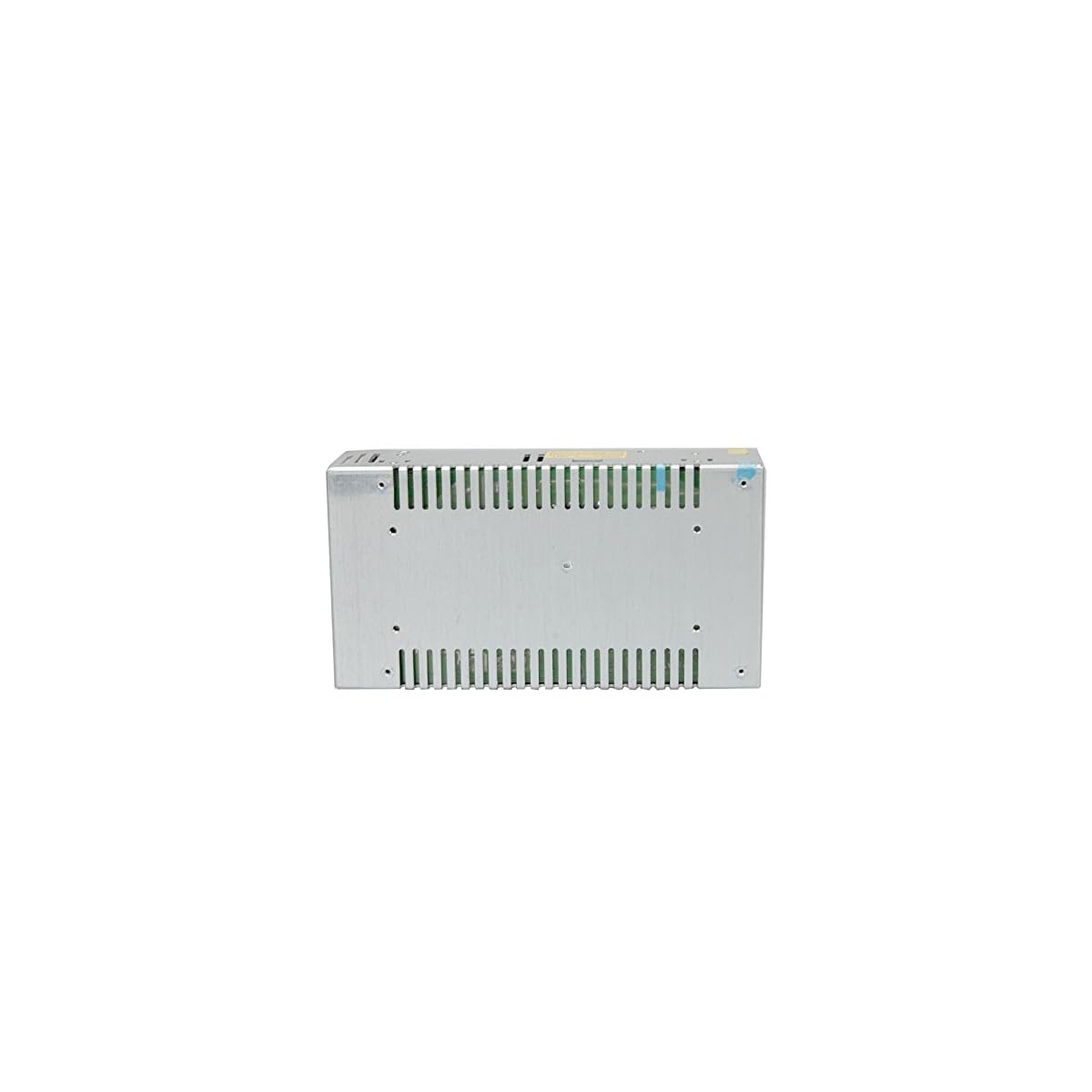

External power supply round hole mesh heat vents, in the range of 50cm throughout the outlet Do not place other flammable items.
5 cm in the product range not place other items, to make certain that the powersupply has good thermal environment, to verify safety.
Please as it should be calculate the load power, do not overload. When thepower is working, do not touch the case.
Do not short-circuit output if no output, please use off one minute re-energized.
Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.
Professional installation of qualified electrician is highly really helpful.
Be certain that this fits by entering your model number.
IN-DOOR USE ONLY!

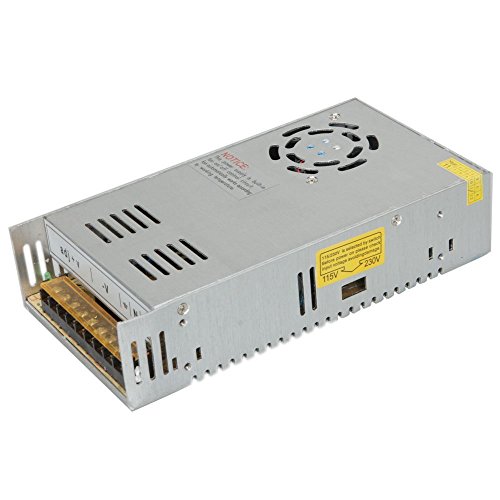

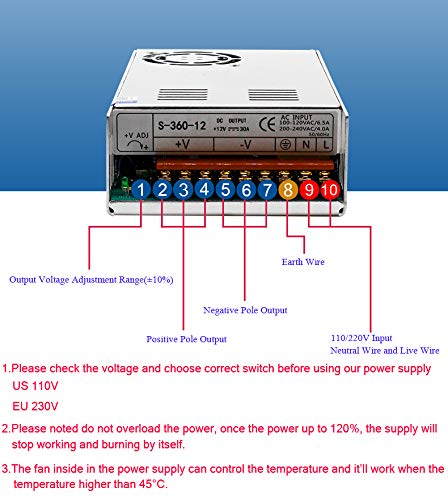

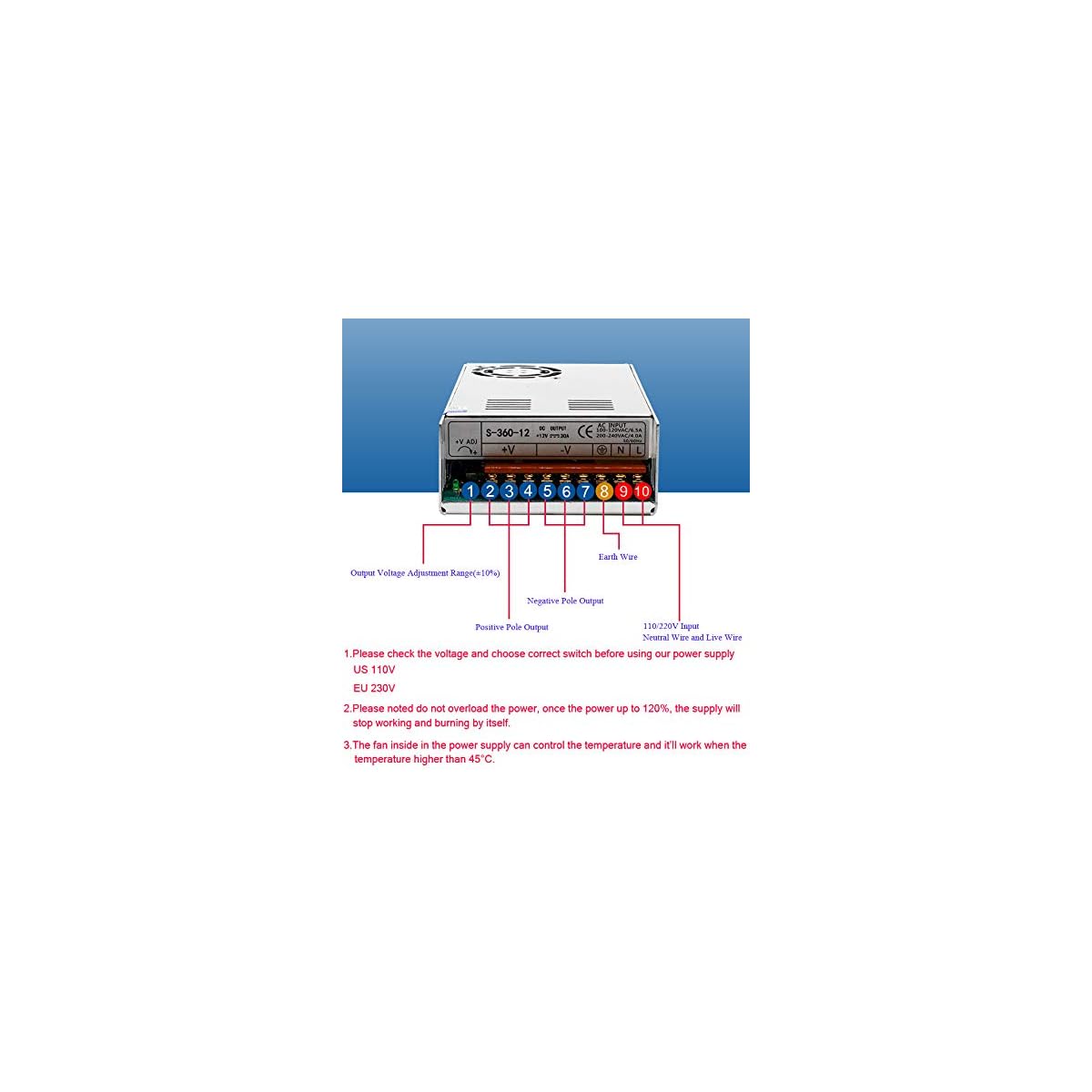

You’ll be able to make a choice the input voltage (110V/230V) by switch.
Smart device surge protection for Shortage Protection, Overload Protection, Over Voltage Protection
Prime quality Switch Power Supply Widely used in Industrial automation, LED display, communications, and so forth.
