Features :
SE-PCIE-SC-10 can create a superior home theatre sound system. It offers SPDIF input and output ports which deliver crystal-clear digital optical audio, for without equal listening experience.
Versatile performance.
With as much as 24-bit and 192KHz playback and recording, this 7.1 surround sound adapter card delivers high-definition audio for excellent sound quality.
Specifications :
Hardware
Bus Type : PCI Express X1
Card Type : Same old Profile
Chipset : C-Media – CM8828 + CM9882A
Performance :
Audio Specifications : 24-bit / 192KHz playback and recording
SNR: Approx 92dB (A-weighting) at front output
Connections:
– Analog left / right line input
– Analog left / right microphone input
– S/PDIF digital optical input
– S/PDIF digital optical output
– 2x 10-pin header
– 9-pin header
– 2x analog CD-input header
– Front left / right analog output
– Side surround left / right analog output
– Center / subwoofer analog output
– Rear surround left / right analog output
Full Duplex Make stronger : Yes
Connector(s) :
Connector Type(s) : 1 – PCI Express x1 Male
External Ports : 2 – Toslink (SPDIF; Optical) Female
6 – 3.5 mm Mini-Jack (3 Position) Female
Internal Ports : 2 – MPC2 (4 pin; Audio) Male
: 2 – IDC (10 pin; Motherboard Header) Male
: 1 – IDC (9 pin; USB 2.0; Motherboard Header) Male
Software
OS Compatibility : Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
ASIO driver support
System Requirements : PCI Express enabled computer with an to be had PCI Express x1 slot or higher (x4, x8, x16)
Additional slot in your computer case if installing and the usage of the header bracket
Package Content :
1 x sound card
1 x user manual
1 x Driver CD
Be certain this fits by entering your model number.
PCIe 1 x Bus

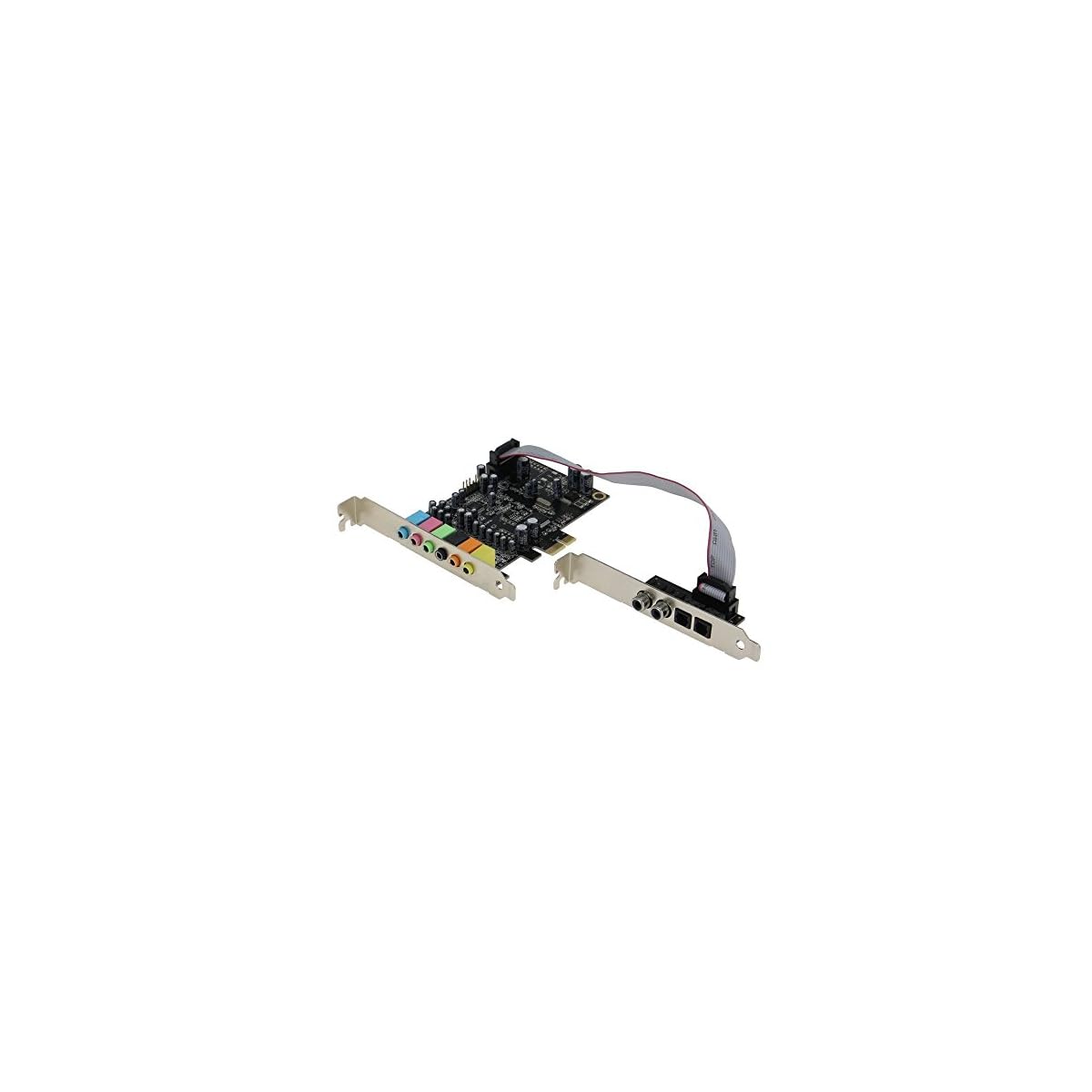

7.1 Channel with SPDIF Input / Output bracket
CMedia CM8828 + CM9882A chipset
24-bit / 192KHz playback and recording
ASIO driver Make stronger
