FAQ:
- Question 1: Can the Reolink cameras work on another brand NVR?
- Answer: It is not suggested to do that. Different manufacturers may use different protocols, so we couldn’t test all NVR models from other brands and determine their compatibility.
- Question 2: Can use synology station monitoring to back up the videos on a nas?
- Answer: Yes, this kind of camera supports Onvif 2.1 profile S protocol to third-party software.
- Question 3: What is the size of the DC12v power adapter for this camera?
- Answer: The size needed for the DC 12V adapter is φ6.3*5.5mm *2.1mm.
|
|
|
|
|
|---|---|---|---|

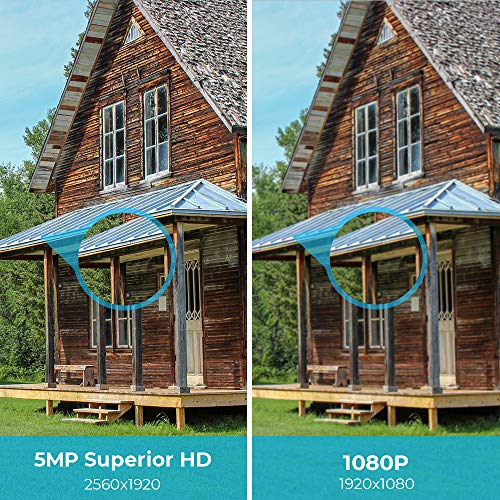

See Details in Authentic Color in 5MPMost 720P/1080P IP cameras in the market capture non distinct images, but this RLC-520 camera is with 2560x1920p high resolution. It presents real colors of objects and enables you to view sharp and super clear images with live video streaming, you’ll never miss any details |

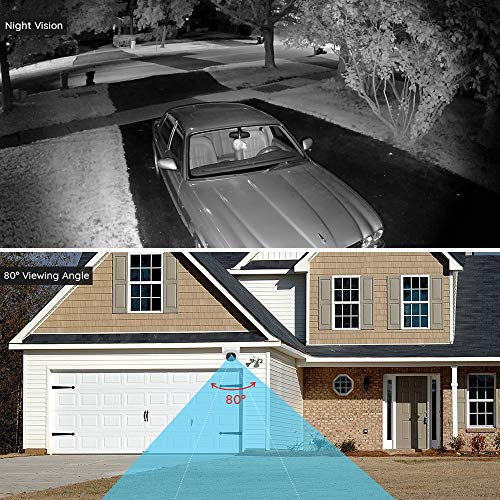

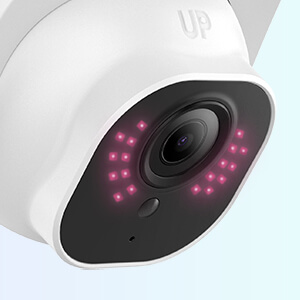

Decent and Clear Night Vision Up to 100ftEquipped with 18pcs IR LED lights, this security cam delivers clear and sharp pictures and videos even in low light conditions. Your property will be clearly visible at night with the distance of up to 100ft. Without missing a thing in the dark, it is great for home and business security. |
Smart Motion Detection with Multiple AlertsWhenever a danger is detected, the camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. It also supports to upload and save captured images or videos to an FTP server with photo or video. You can customize a specific motion detection zone, focusing on the important areas like your driveway, mailbox or backdoor. |
Remote Access via Browsers and FREE Reolink SoftwareWithout limitation of browsers for live view and playback, you can view via IE Edge, Chrome, Firefox, Safari. Free Windows/Mac Reolink Client and Android/iPhone App offer more reliable and easier remote control for you. |

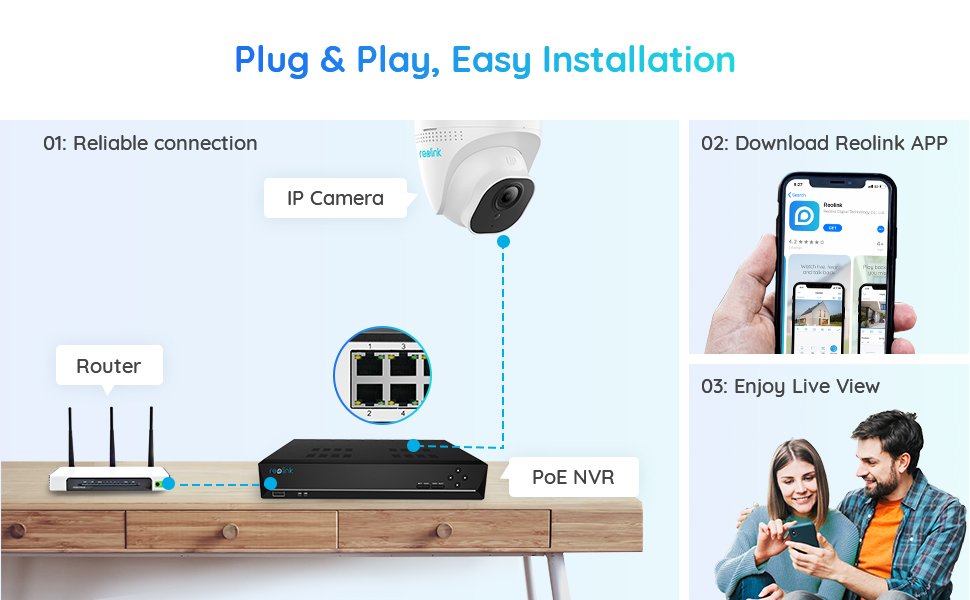

What else needed to get it to work:
- Ethernet Cable (the 1m cable in the box is for the initial test).
- Reolink PoE NVR/Reolink PoE Security Systems (or PoE switch/injector from other sellers).
- Smart devices for installing Reolink APP or Reolink Client.
- Network Service.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Reolink RLC-520 (Pack of 2) | Reolink RLC-410 (Pack of 2) | Reolink RLC-511 | Reolink RLK8-520D4-5MP | Reolink RLK8-410B4-5MP | Reolink RLK8-800B4-8MP | |
| Resolution | 5MP(2560×1920) | 5MP(2560×1920) | 5MP(2560X1920) | 5MP(2560×1920) | 5MP(2560×1920) | 8MP(3840×2160) |
| Camera Type | Plug-and-Play PoE Camera | Plug-and-Play PoE Camera | Plug-and-Play PoE Camera | Plug-and-Play PoE Camera System | Plug-and-Play PoE Camera System | Plug-and-Play PoE Camera System |
| Network | Wired to Router | Wired to Router | Wired to Router | Wired to Router | Wired to Router | Wired to Router |
| Storage | Micro SD Card(No include), FTP, NVR | Micro SD Card(No include), FTP, NVR | Micro SD Card(No include), FTP, NVR | Built-in 2TB HDD, support 8TB in total | Built-in 2TB HDD, support 8TB in total | Built-in 2TB HDD, support 8TB in total |
| Pan Tilt Zoom | x | x | Only 4x Optical Zoom | x | x | x |
| Audio | Built-in Mic | Built-in Mic | Built-in Mic | 1CH RCA (Linear, 1kΩ) | 1CH RCA (Linear, 1kΩ) | 1CH RCA (Linear, 1kΩ) |

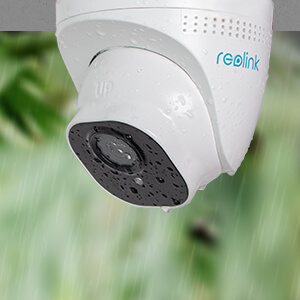

| Waterproof | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Powered | 12V DC or 48V PoE (IEEE 802.3af) | 12V DC or 48V PoE (IEEE 802.3af) | 12V DC or 48V PoE (IEEE 802.3af) | Input 100-240V, 48V 1.87A | Input 100-240V, 48V 1.87A | Input 100-240V, 48V 2A |
| Night Vision | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft |
| Remote Viewing and Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Make sure this fits by entering your model number.
1920P HD TURRET CAMERA: 5MP super HD 1920P turret camera, 18pcs embedded infrared LEDs and advanced IR technology to get clear image in the dark, 100ft decent night vision range, 4.0mm lens with 80˚ wide viewing angle.

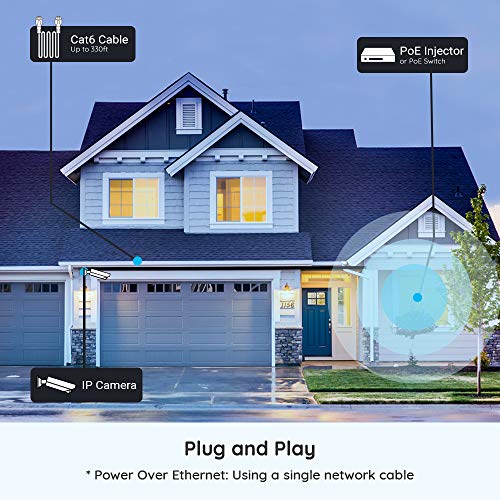

PLUG and PLAY POE INDOOR or OUTDOOR: Wired PoE dome surveillance camera, plug and play, ceiling-mounted, versatile in applications and easy installation, indoor and outdoor use.
MOTION SENSING, EMAIL ALERT: Flexible motion detection (set detection zone, schedule detection and adjust sensibility), real-time and accurate movement alert via App push notification, email, support automatically upload motion-triggered image capture and recording to FTP.

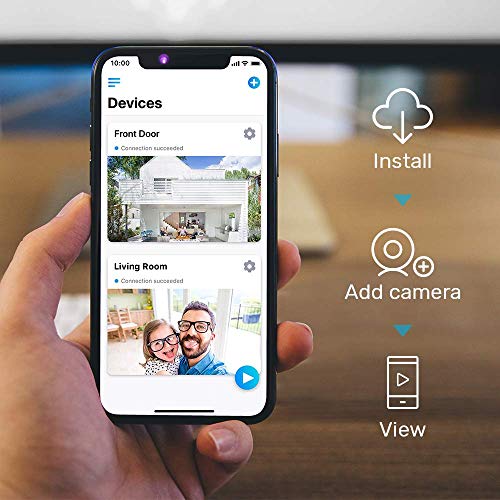

FREE APP, NO SUBSCRIPTION FEE: Rich features and functions in free App or Client for iPhone, Android, Windows PC, Mac, no subscription fee. Live view, remote access, motion detection and smart alarm, multiple channels (at least 8 camera sources), intuitive and easy to navigate user interface.

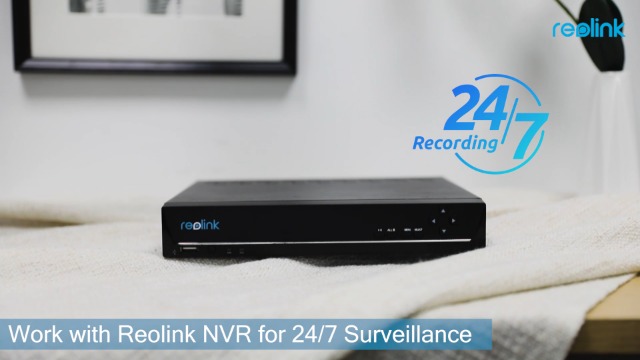

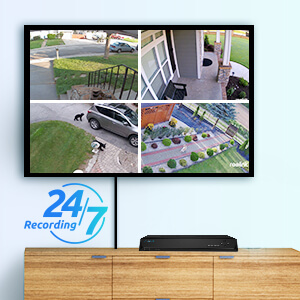

AUDIO FUNCTION, 24×7 RECORDING WITH NVR: Built-in microphone, enable or disable audio on App, reliable non-stop surveillance with HD video. 24×7 video recording with Reolink PoE network video recorders (support up to 16 cameras and all Reolink PoE IP cameras). This IP cctv camera only fully compatible with Reolink NVR and third party Onvif 2.1. Support FTP upload.
