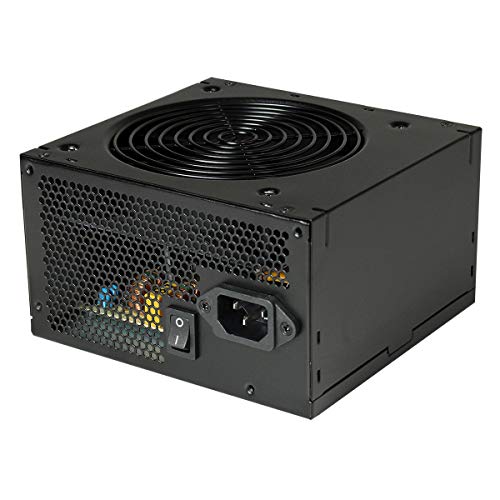

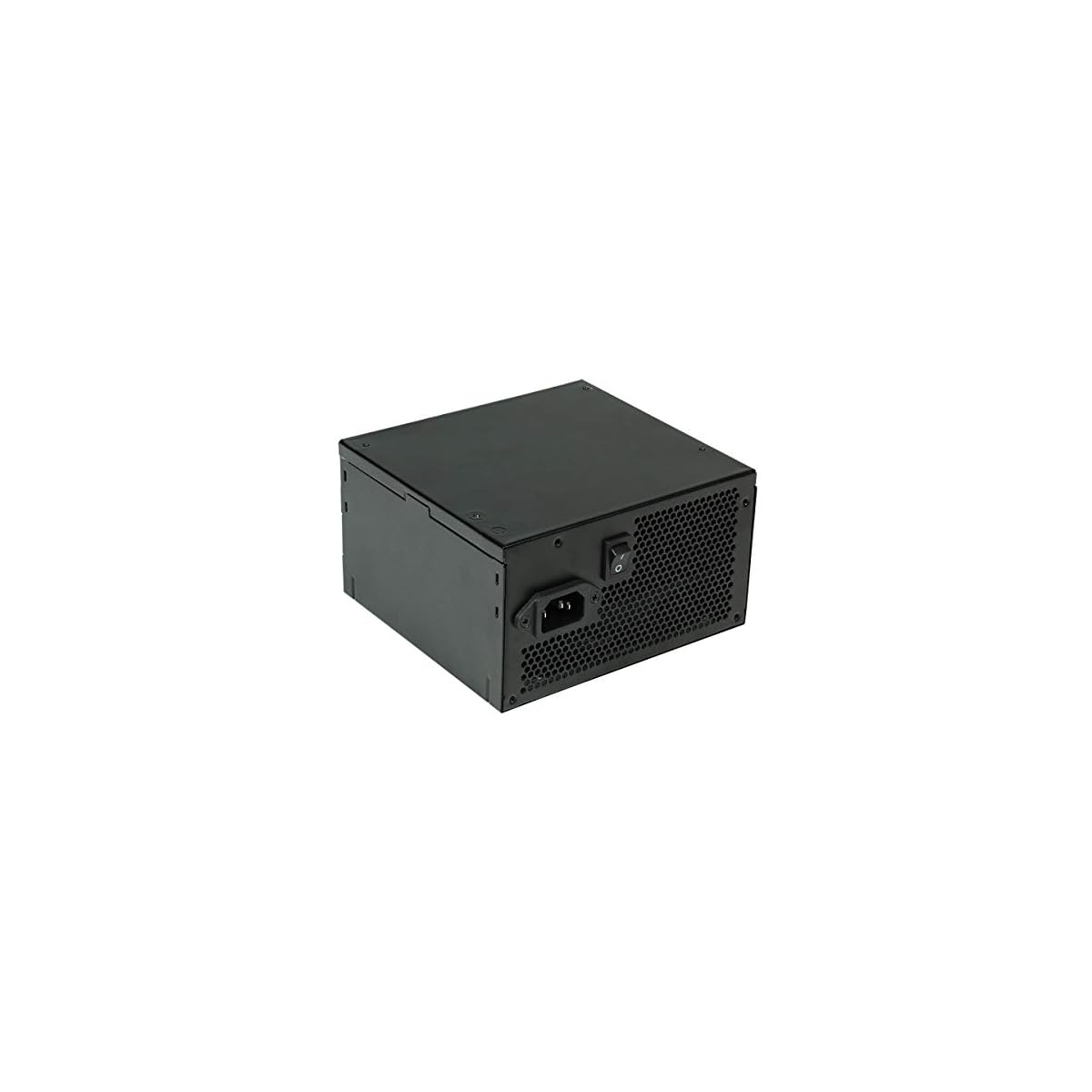

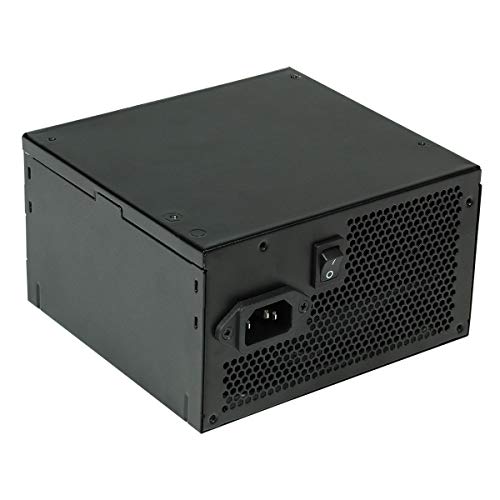

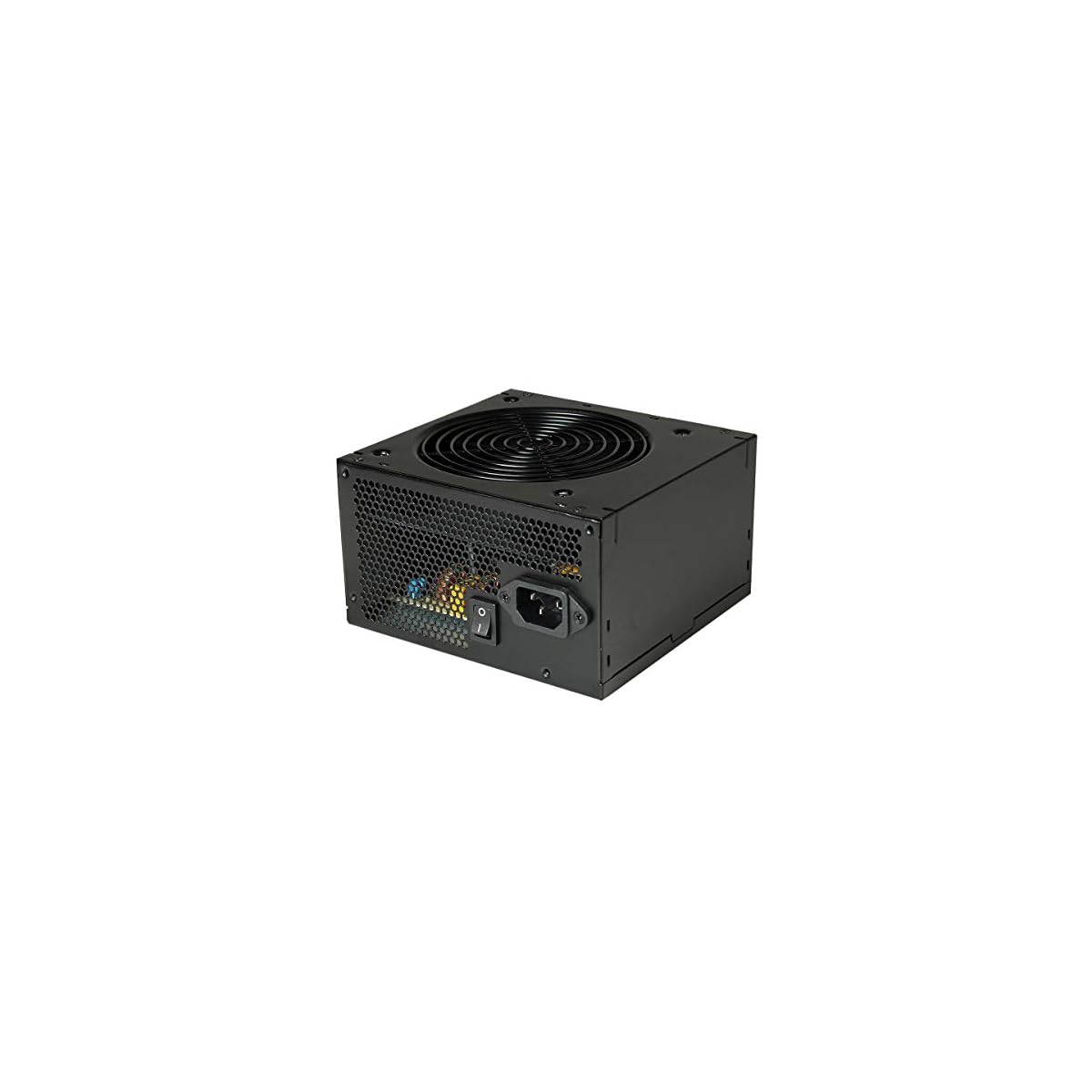

Fortitude 500W PSU offers 80 PLUS levels of energy efficiency, massive 12V single rail output gave you the power you needs. Super thermal-controlled quiet 120mm fan creates a proper airflow inside the case. Dual 6+2 PCI-E connectors are suitable for most demanding SLI or CrossFire systems. 7x SATA connectors suitable for your storage demand.
Specifications
– AC Input: 200-240Vac 4.0A 47-63HZ
– DC Output: +3.3V 18A, +5V 17A, +12V1 38A, -12V 0.3A, +5VSB 2.5A
– Max Output: 500W
– Connectors:
1x 24-Pin (20+4 pin)
1x 8-Pin 12V (4+4 pin)
7x SATA
4x 4-Pin Molex
2x 8-Pin PCI-E (6+2 Pin)
1x Floppy
– Dimensions: 150mm x 86mm x 140mm (W x H x D)
– PFC: Active PFC
– Power Good Signal: 100-500ms
– Hold Up Time: 10msec min at 80%
– Efficiency: – MTBF: 100,000 Hours
– Safety Protection: OPP/OVP/UVP/SCP
– Operation Temperature: 0-40°C
– Safety Certificates: CB/CE/TUV
– Cooling: 120mm Fan
– Noise: – 80 Plus Certified: Yes – 80 Plus Efficency
Make sure this fits by entering your model number.
Reliable and Compatible – The 500W PSU is built and tested to strict standards for an excellent working power supply that enables trouble-free installation and a smooth operation.
High Power And Low Noise – 80 Plus certified efficiency and a clever fan design enables very little or no detectable fan noise all over regular operation.

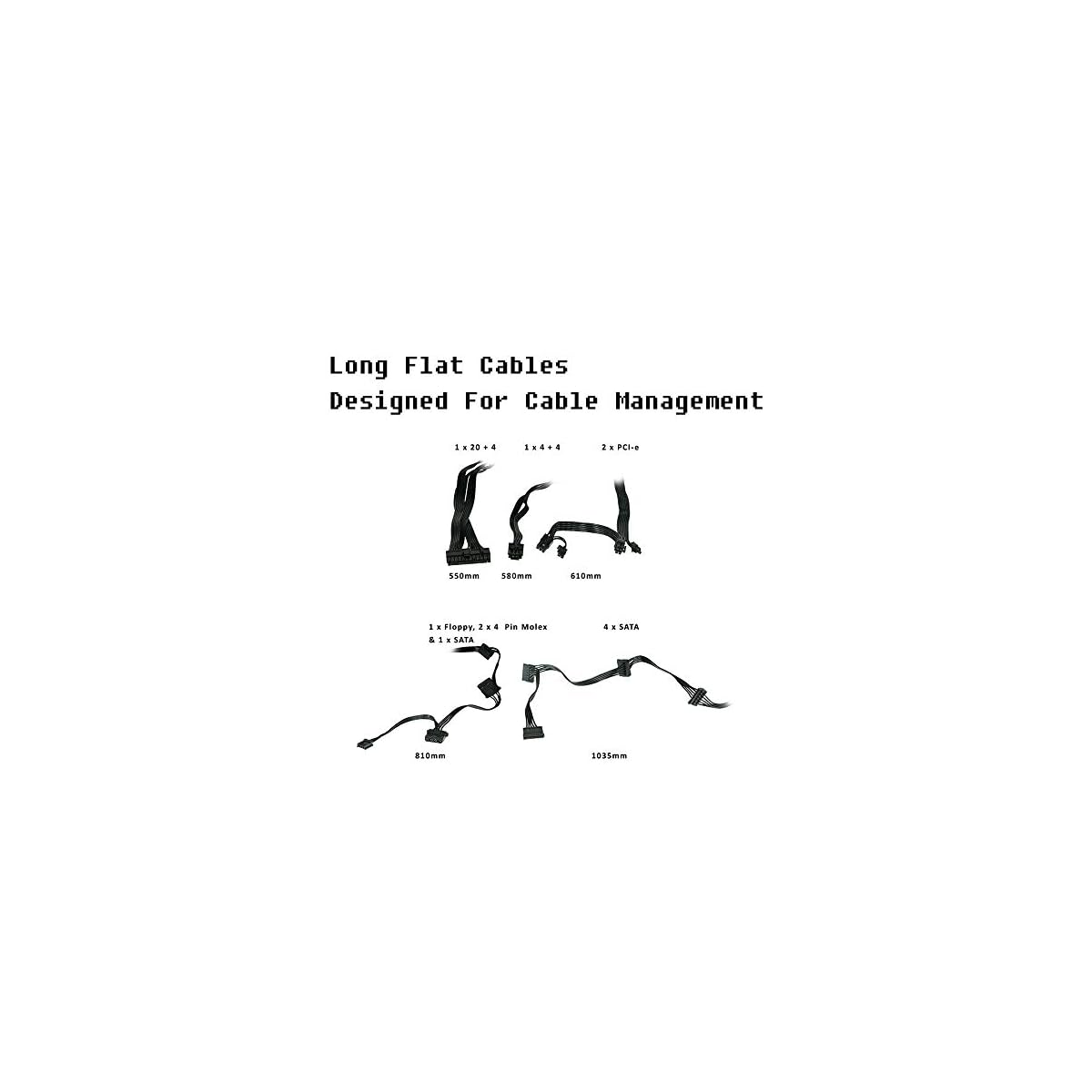

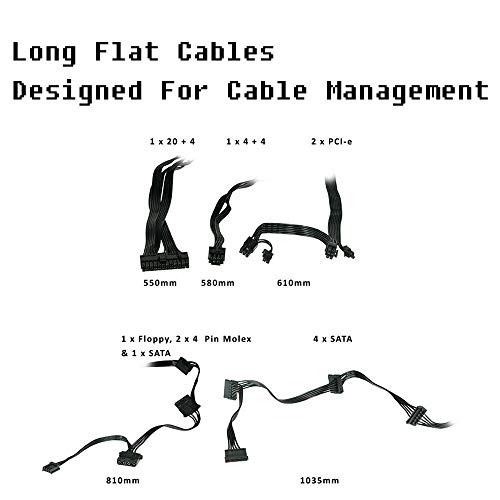

Long Flat Cables – Long flat connector cables make this power supply suitable for installation although you are attempting to build in a full-tower chassis and with a lot of cable choices permits you to power more than one components and storage devices.

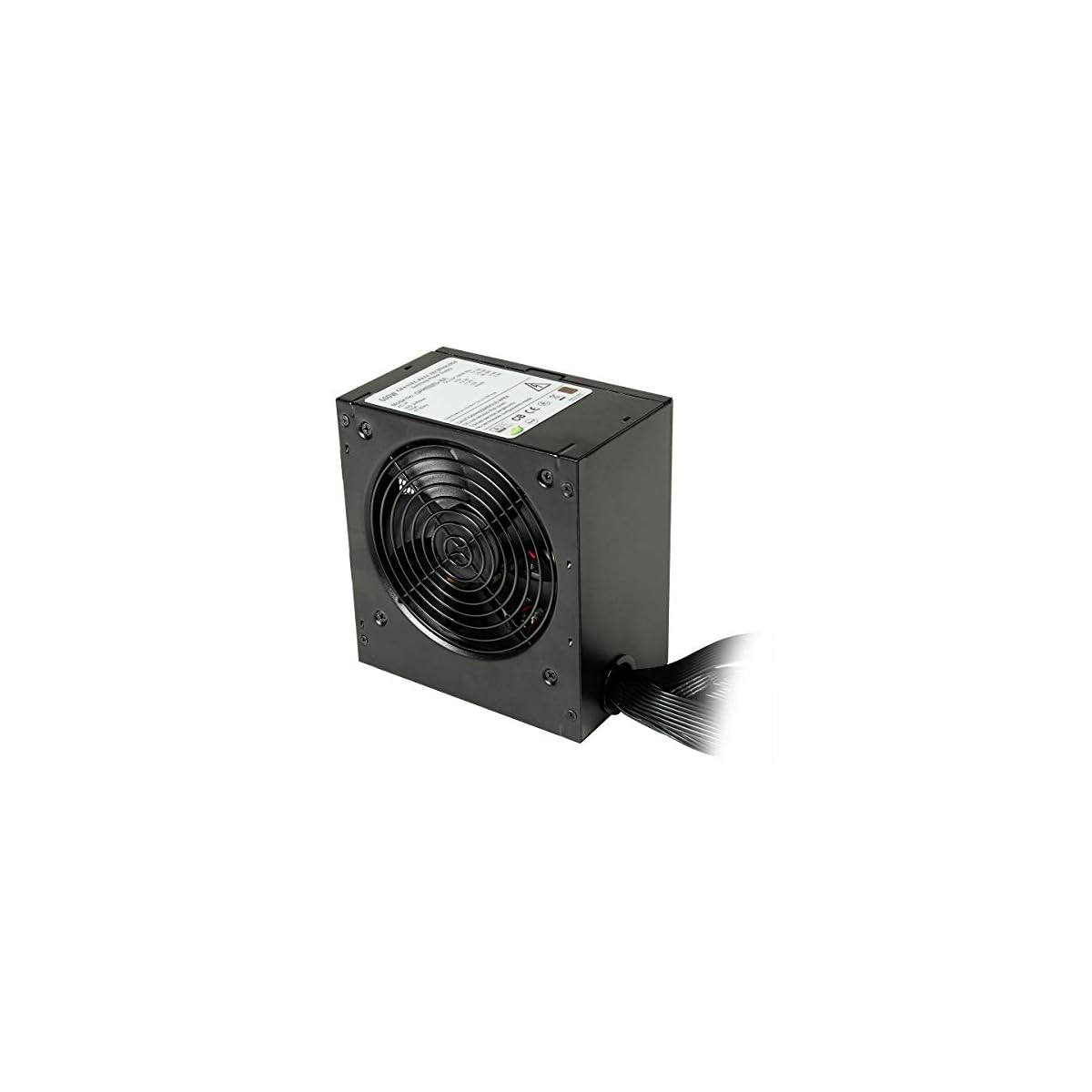

120mm, Thermally Controlled Fan – Once your PSU is installed you do not wish to look at it again. With the thermally controlled fan makes this power supply virtually silent and with the large-diameter the noise is reduced even when you’re pushing your system to the limit.
Fully Safe: Active PFC, Over Voltage Protection (OVP), Under Voltage, Over Power Protection (OPP), Over Temperature Protection (OTP) & Short Circuit Protection (SCP)
