Descriptions:

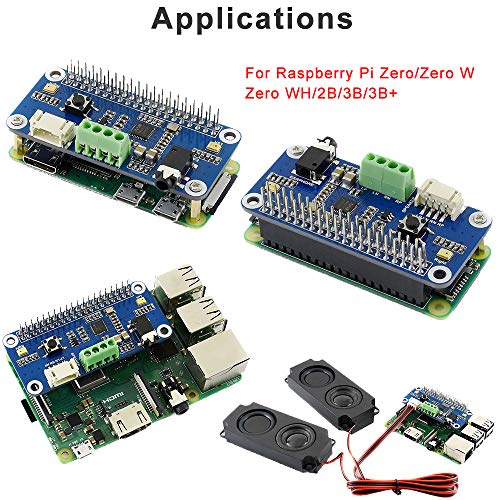

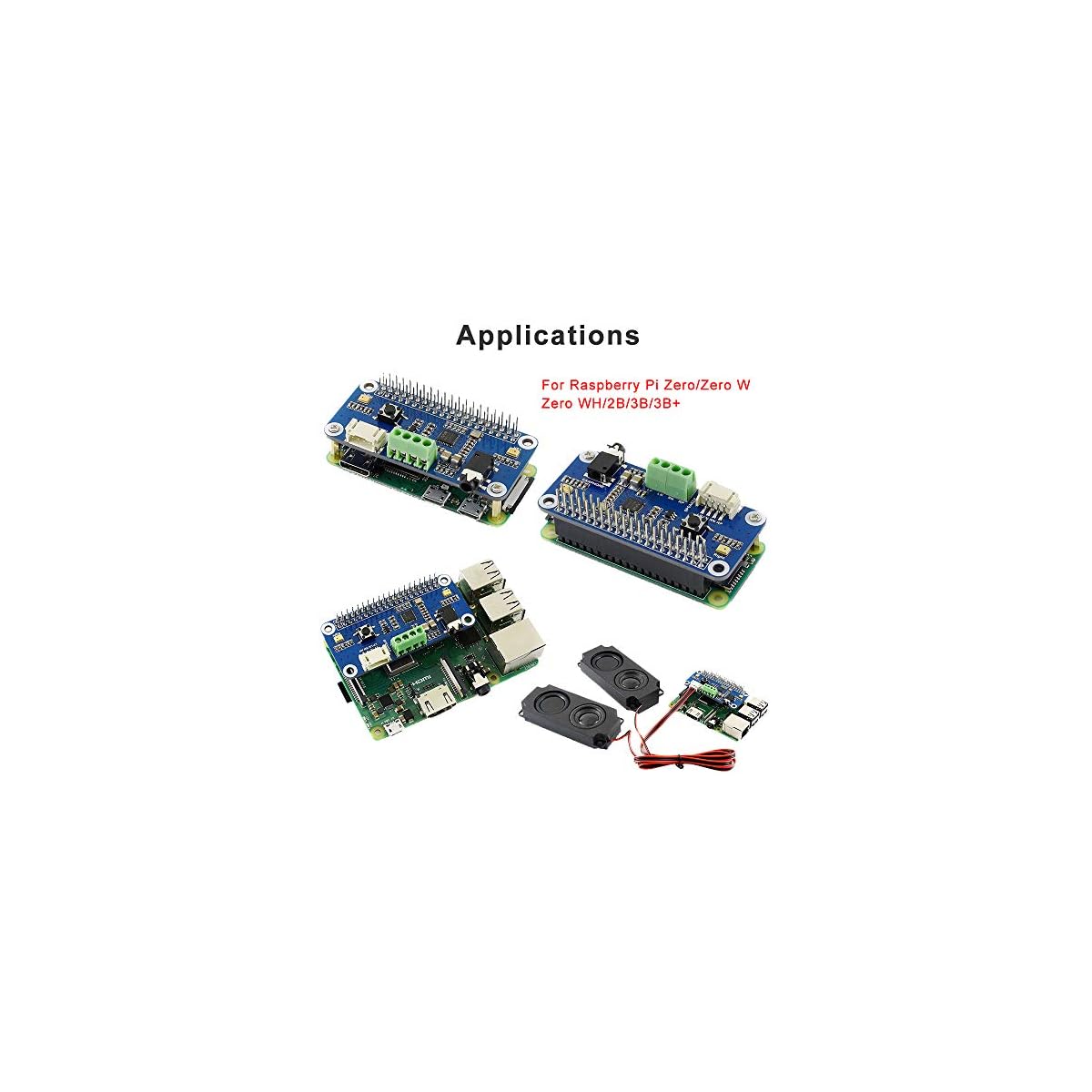

1. In line with Raspberry Pi interface design, suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+;

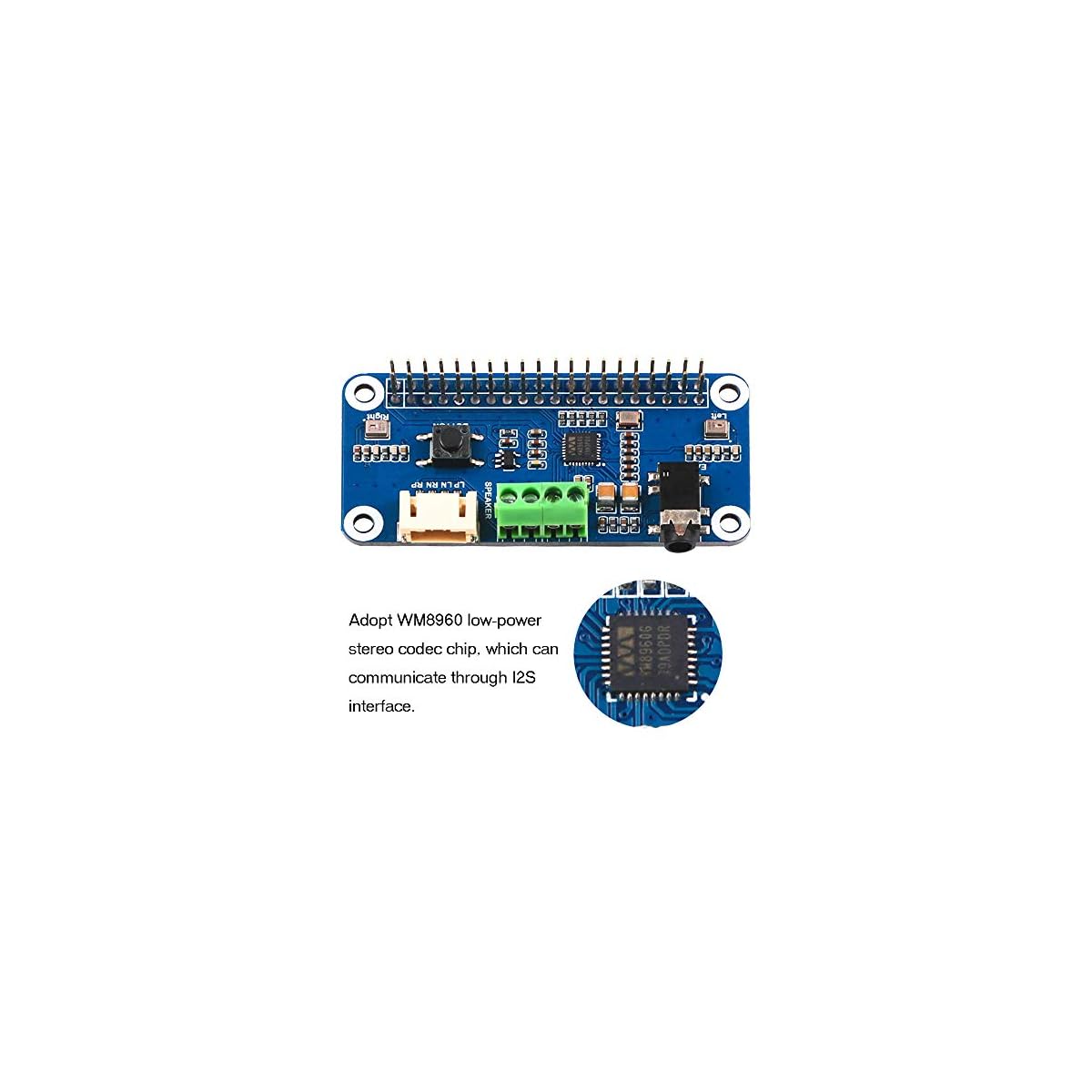

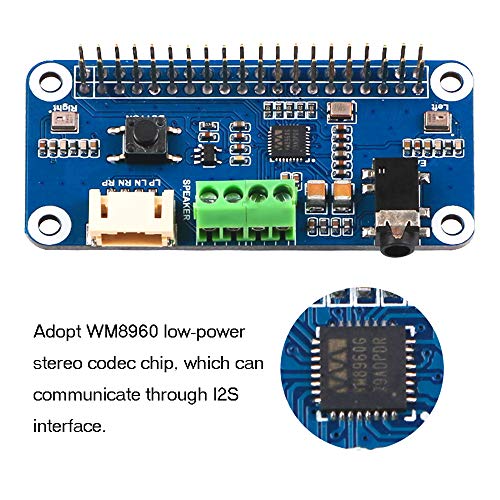

2. Adopt WM8960 low-power stereo codec chip, which is able to keep in touch through I2S interface;
3. Two fine quality MEMS silicon microphones onboard for recording left and right channels for better sound quality;

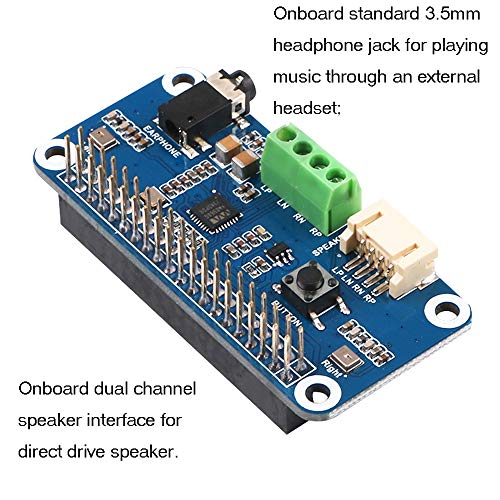

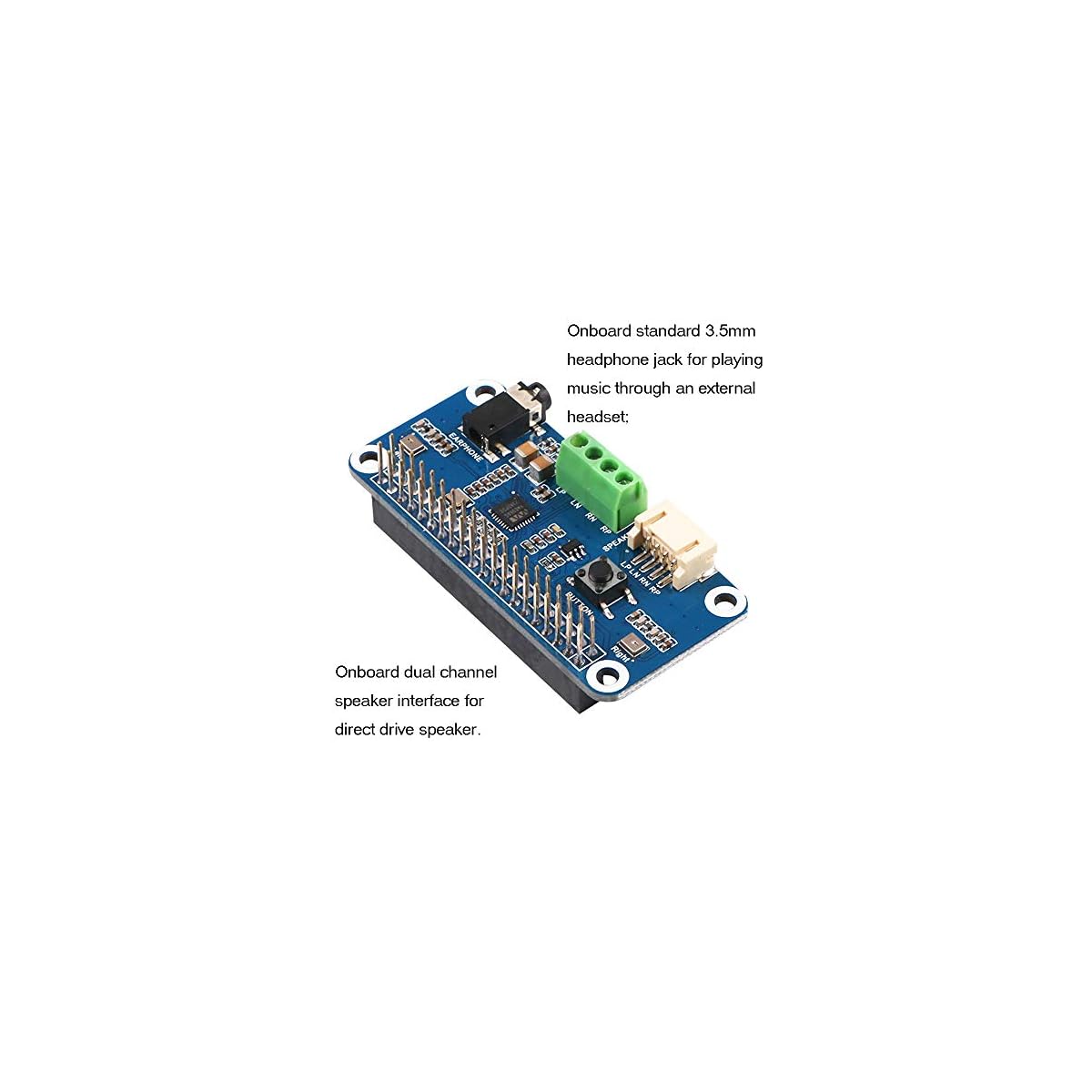

4. Onboard standard 3.5mm headphone jack for playing music through an external headset;
5. Onboard dual channel speaker interface for direct drive speaker;
6. Fortify stereo, 3D surround and other audio output.
Parameters:
1. Audio codec chip: WM8960

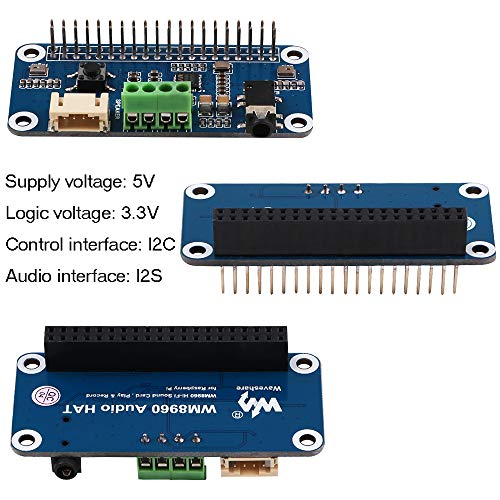

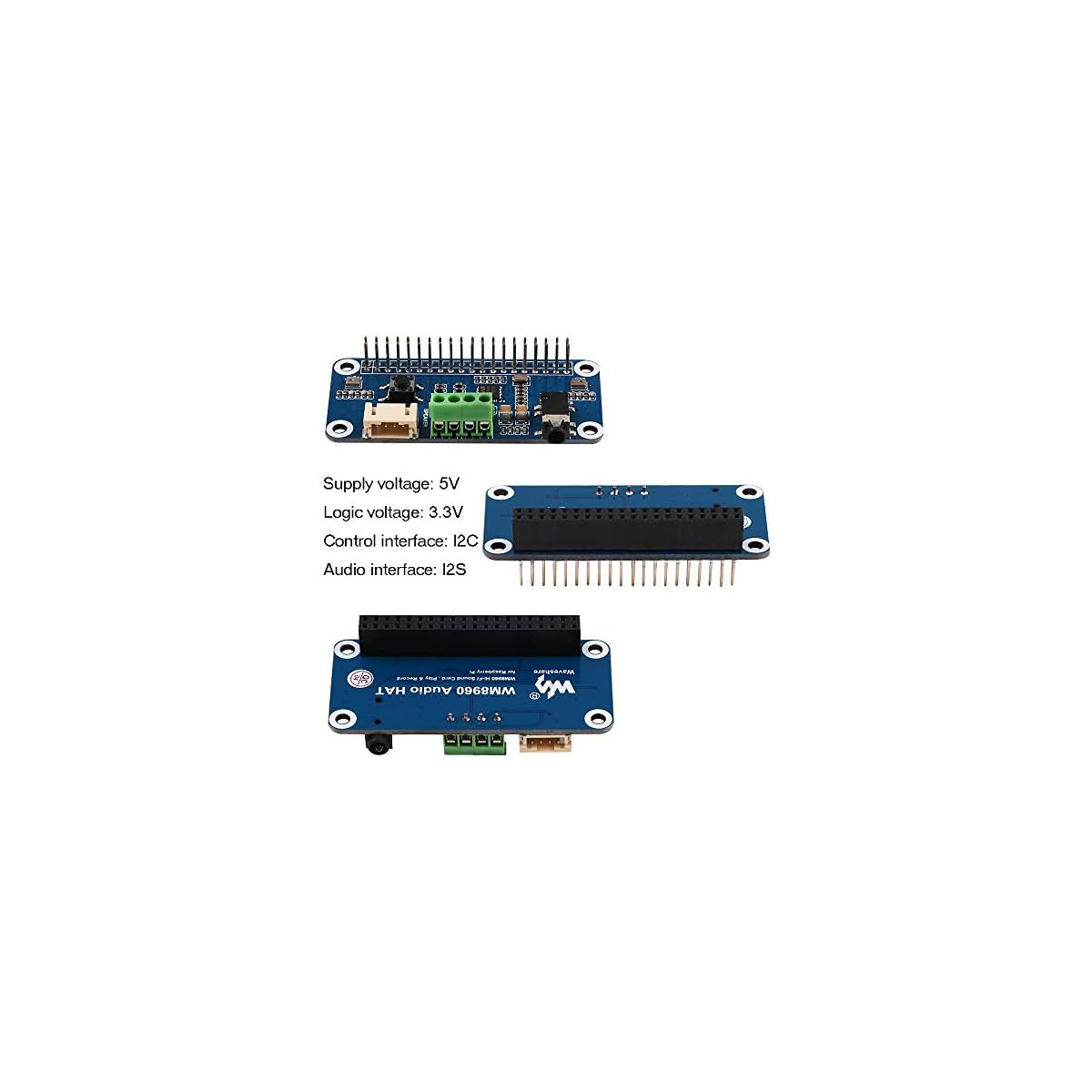

2. Supply voltage: 5V
3. Logic voltage: 3.3V
4. Keep an eye on interface: I2C
5. Audio interface: I2S
6. DAC signal to noise ratio: 98dB
7. ADC signal to noise ratio: 94dB
8. Headphone drive: 40mW (16Ω3.3V)
9. Speaker driver: 1W per channel (8Ω BTL)

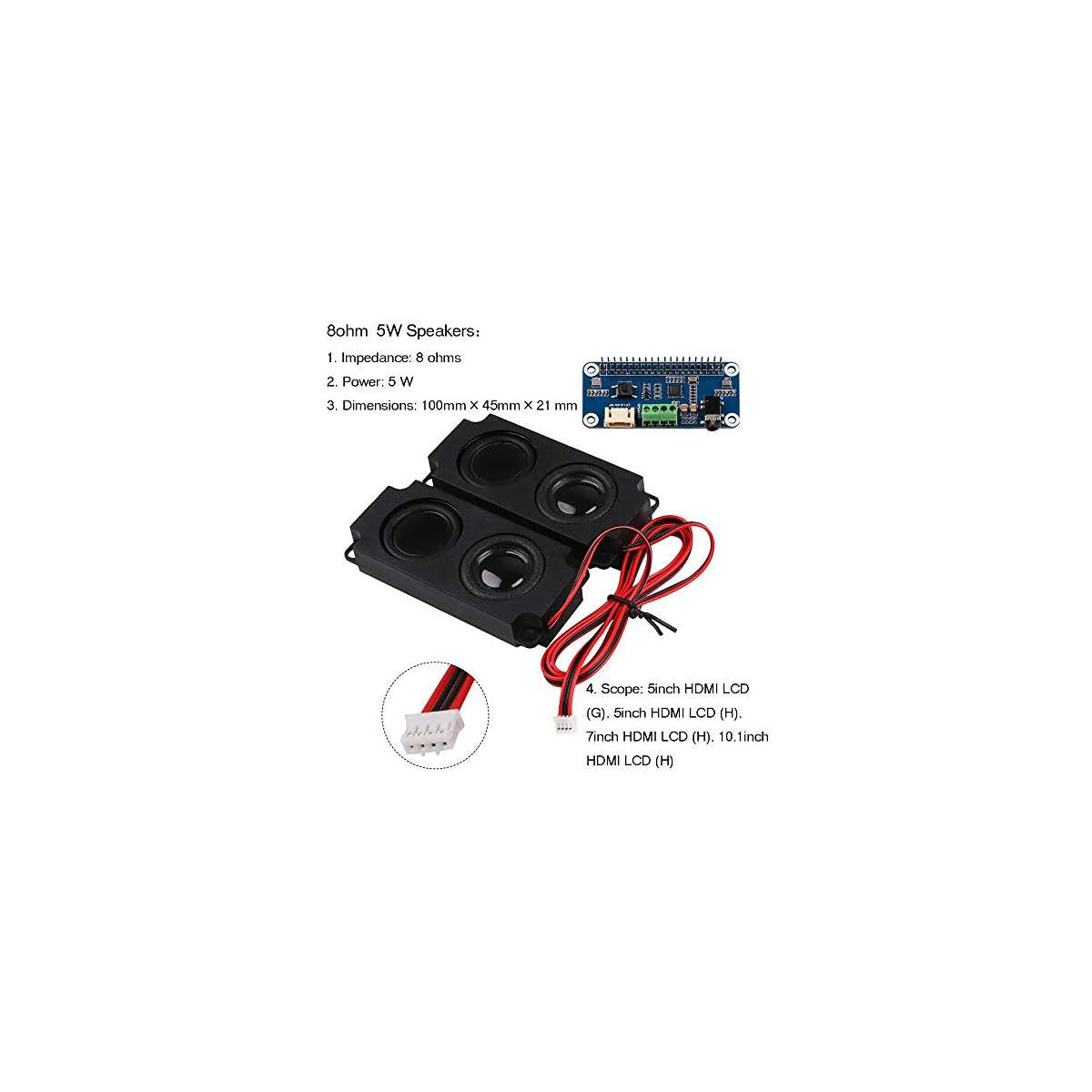

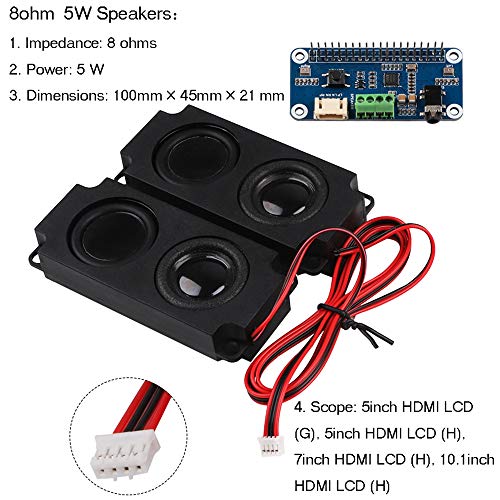

8Ω 5W Speakers：
1. Impedance: 8 ohms
2. Power: 5 W
3. Dimensions: 100mm × 45mm × 21 mm
4. Scope: 5inch HDMI LCD (G), 5inch HDMI LCD (H), 7inch HDMI LCD (H), 10.1inch HDMI LCD (H)
Provide an entire supporting information manual (providing python playback and recording programs/user manuals)
Download link: www.waveshare.com/wiki/WM8960_Audio_HAT
Package Including

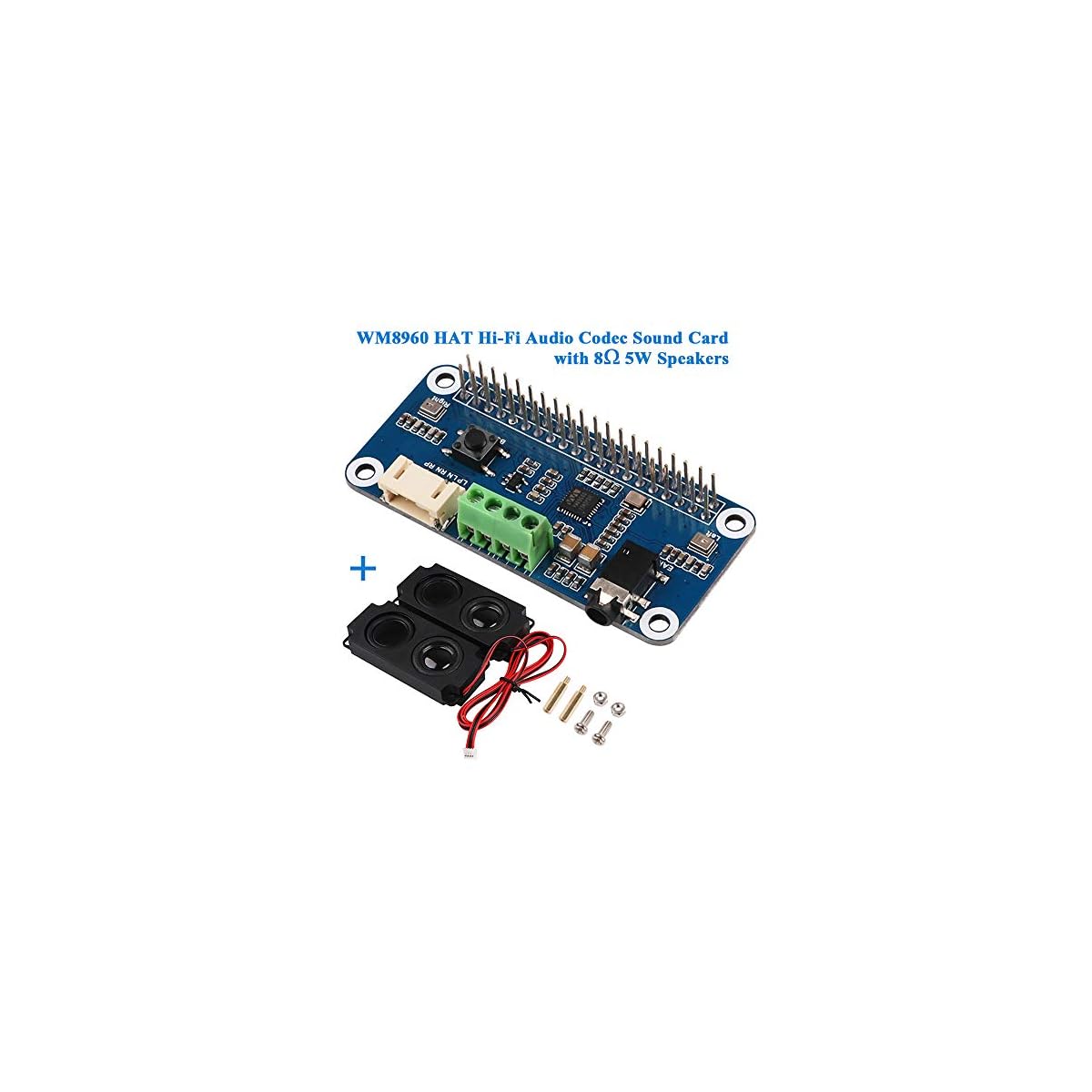

1 * WM8960 Audio HAT Audio Sound Expansion Board
2 * 8Ω 5W Speakers
1 * RPi copper column package (2PCS set)
Be sure this fits by entering your model number.

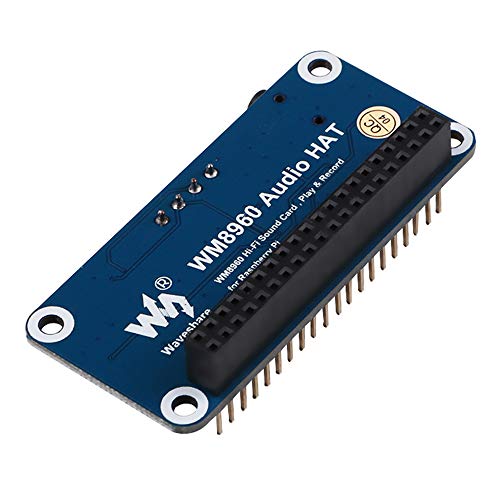

That is an audio sound card expansion board specially designed for the Raspberry Pi. It has low power consumption, stereo codec, high sound quality playback and recording, and can instantly drive the speaker to play music.
In line with Raspberry Pi interface design, suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+; Adopt WM8960 low-power stereo codec chip, which is able to keep in touch through I2S interface.
Two fine quality MEMS silicon microphones onboard for recording left and right channels for better sound quality.
Onboard standard 3.5mm headphone jack for playing music through an external headset; Onboard dual channel speaker interface for direct drive speaker. Fortify stereo, 3D surround and other audio output.
Provide an entire supporting information manual (providing python playback and recording programs/user manuals) / Download link: www.waveshare.com/wiki/WM8960_Audio_HAT
