The up to date generation of Redwing power supplies combines an exciting design with brand new technology and high quality. Within the current revision, the power supply series has been completely revised and adapted to the demands of these days’s computer systems. The result not only convinces through its efficient technic, but with its brand new design and high stability. The connections have been coordinated to current systems and four integrated safety circuits all the time be certain secure operation.
Key Features
Powerful: Optimal performance in each situation
Whisper-Silent Cooling: 1 x 120mm fan
Reliable: Maximum stability at all time
The following safety features: OVP/UVP/SCP/OLP
Wattage: 400W
Form Factor: ATX 2.3
PFC: Passive
Power Switch: Yes
Cooling: 120mm Red Silent Fan
Input Voltage: 200 – 240V
Output:
+3,3V: 16.0 A
+5V: 16.0 A
+12V1: 22.0 A
-12V: 0.5 A
+5VSB: 2.0 A
Connectors:
1 x 20+4 pin ATX-Motherboard
1 x 4 pin CPU
1 x 6 pin PCI-E
1 x 4 pin Molex
3 x 15 pin SATA

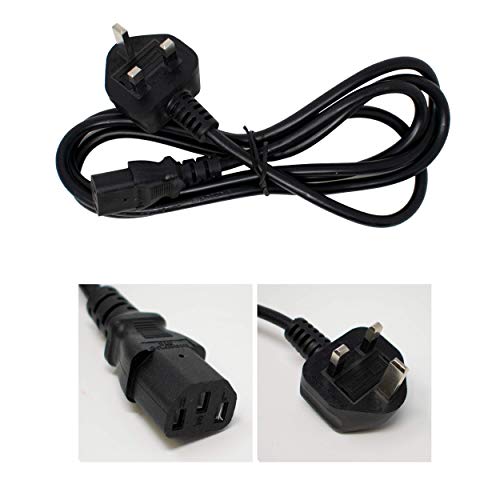

Includes 1.5M 5A Power Cable
Ensure this fits by entering your model number.
400W Switching PSU
Whisper-Silent Cooling
3 x SATA
1 x 4 pin Molex
1 x 6 pin PCI-E
