Mi3217 Key Features:
– Ultra-compact for space-constrained applications
– Low power consumption
– Supports full high-definition video hardware decoding
– Supports Windows 7/8/10 & Linux Ubuntu Applications
Mi3227 Applications:
– HD media player
– network media player
– High-definition media center PC
– Multimedia presentation
– Thin client PC
– Industrial PC
Mi3217 Technical Spec:

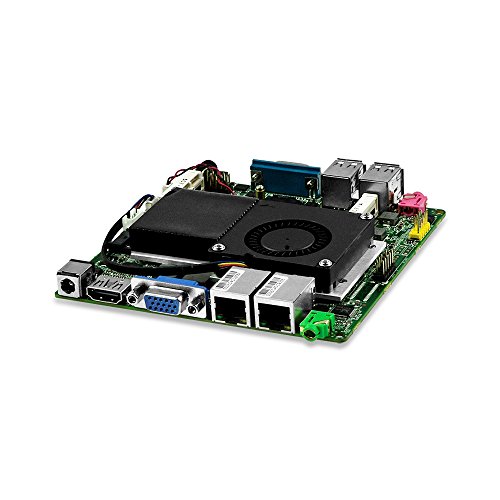

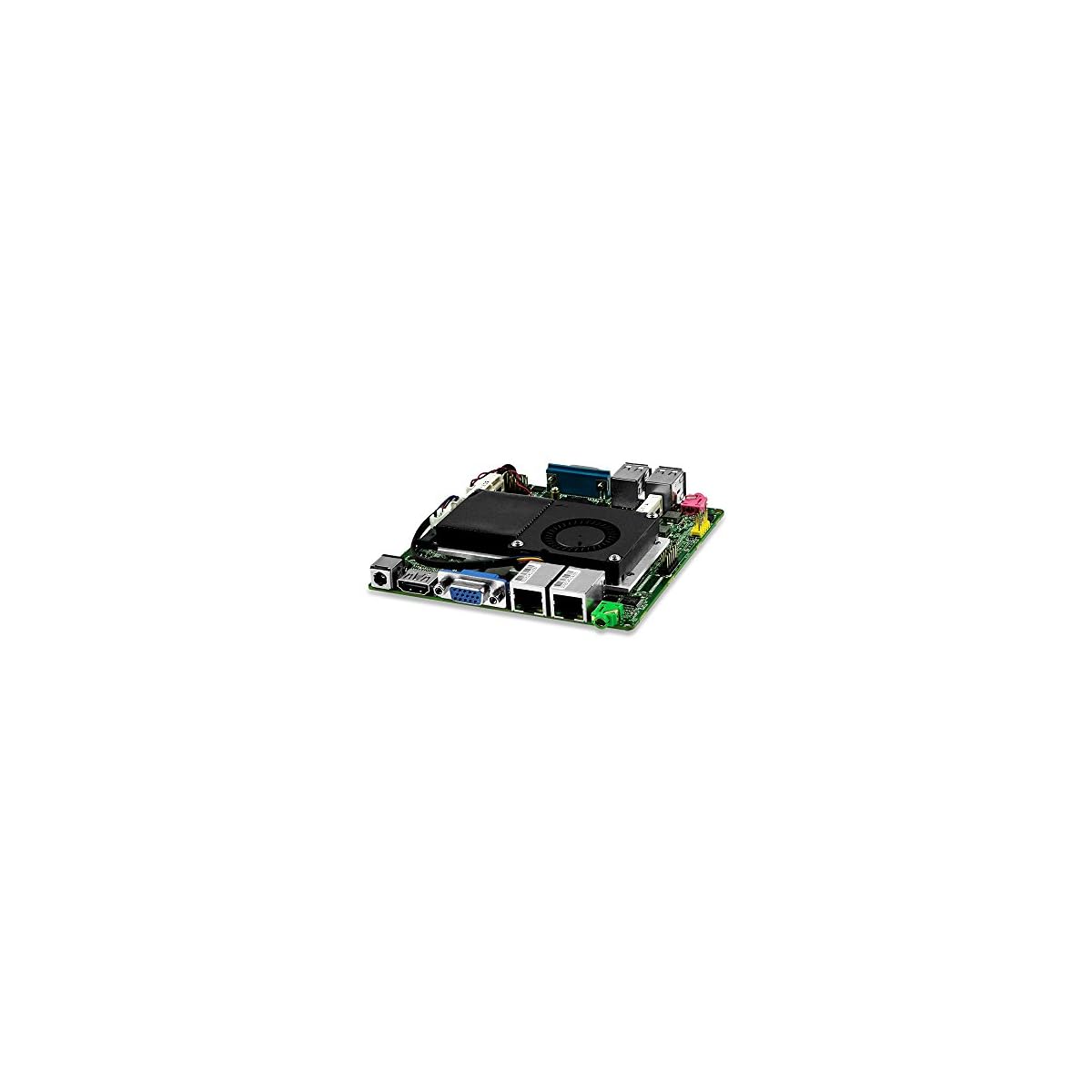

CPU:Onboard Intel Core i3-3217U Processor (3M Cache, 1.80 GHz) Dual core,4 Threads
CPU Cores:2
Power Consumption :17W
BIOS:Improve Call On Serve as Automaticallly,Wake-On-Lan
Memory: 1 * Memory Slot, Improve 2G/4G/8GB 1333/1600MHz DDR3 SO-DIMM Memory;

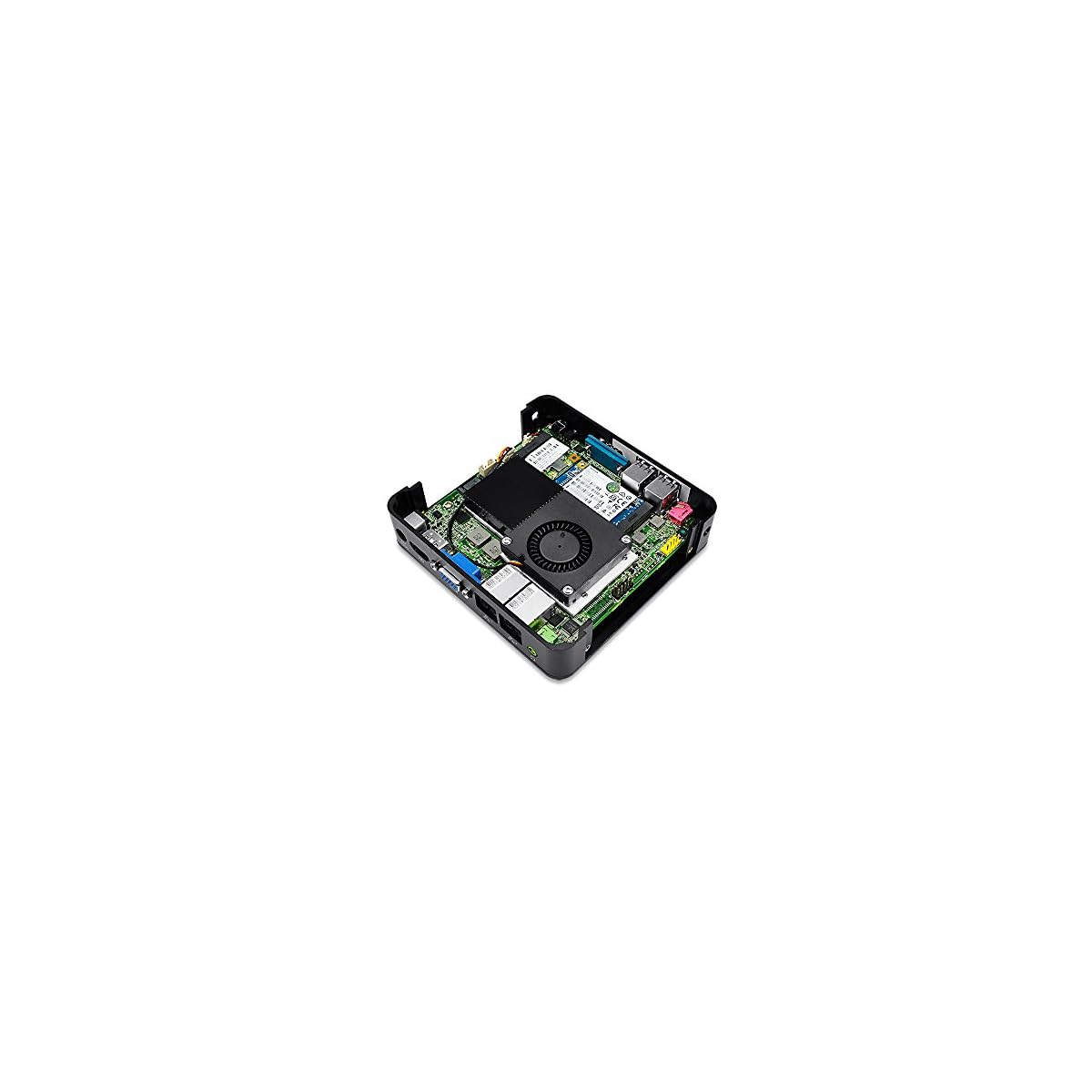

Hard drive: 1 * mSATA SSD slot,1* SATA slot;
Network Interfaces:2 * Realtek RTL8111E 10/one hundred/1000 Controller
Audio Solution:Realtek ALC662 HD Audio
DisplayPort:1*HDMI,1*VGA
COM:1*COM port
USB Ports:4*USB2.0
Power:DC 12V,10W

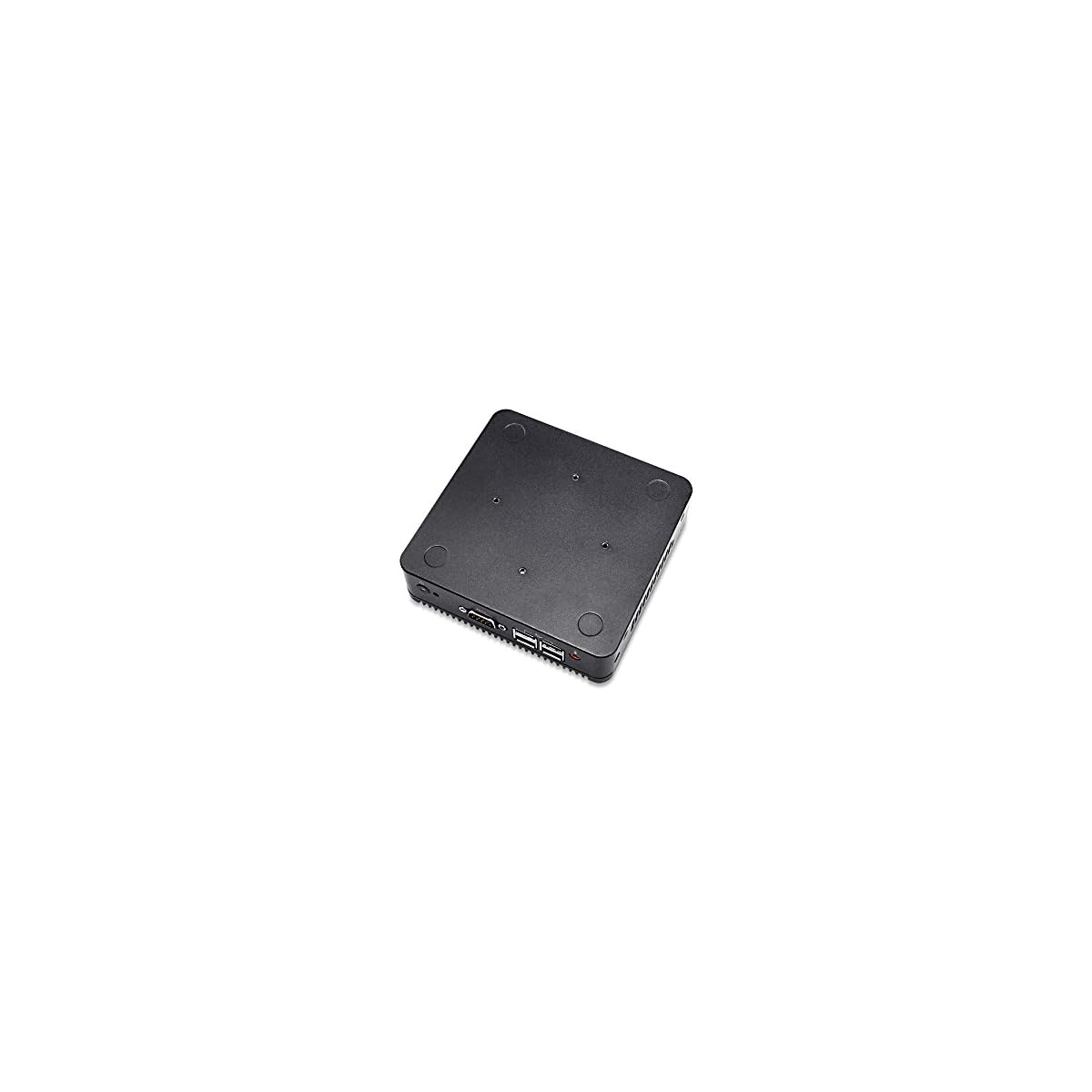

Case:Aluminium alloy
Size: 135*128*45mm (L*H*W)
Net weight: 0.82kg
Gross weight: 2 kg
Cooling:Small Fan,No Noise
Operating Temperature Range:-10 degree to 70 degree
Operating System:Improve Windows 7 / Windows 8 / 10 / Linux / Pfsense .and the like.
Mini pc and all accessories have been tested well before shipping, when you have any questions, please contact us, you’ll get a satisfied solution.for the entire mini pcs you bought from us, we offer a full one-year warranty,and Free Technical Improve.

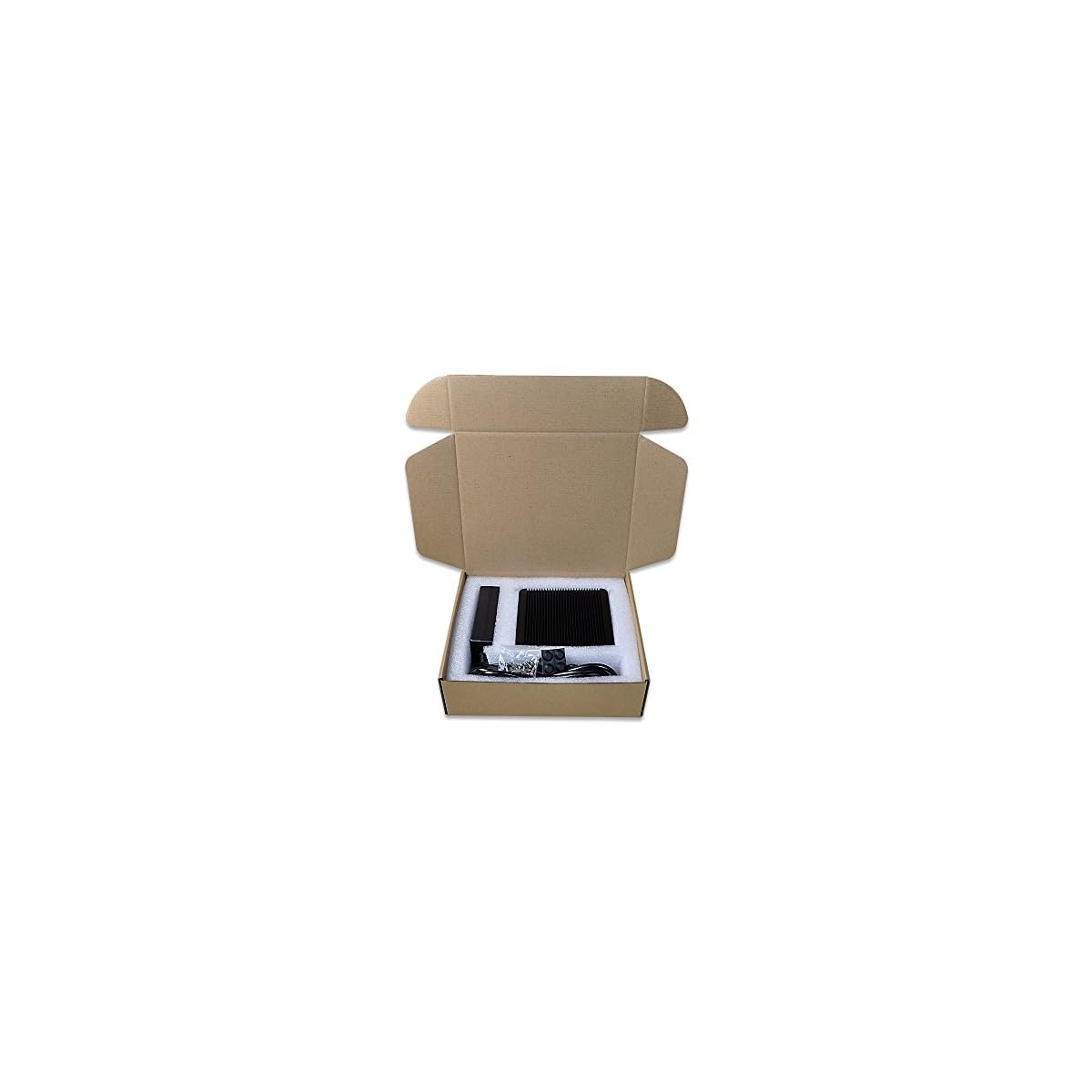

Package Contents:
1 x Mini PC Mi3217
1 x Power adapter
2 x Antennas

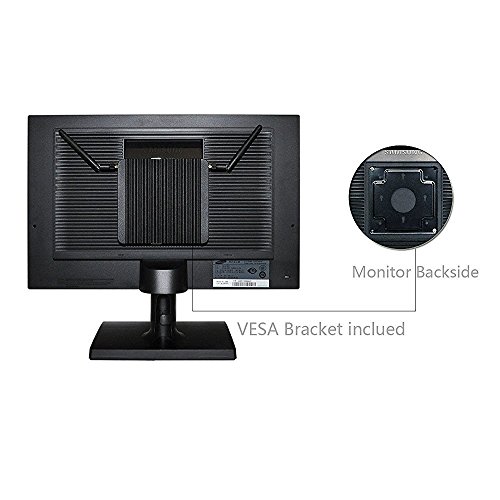

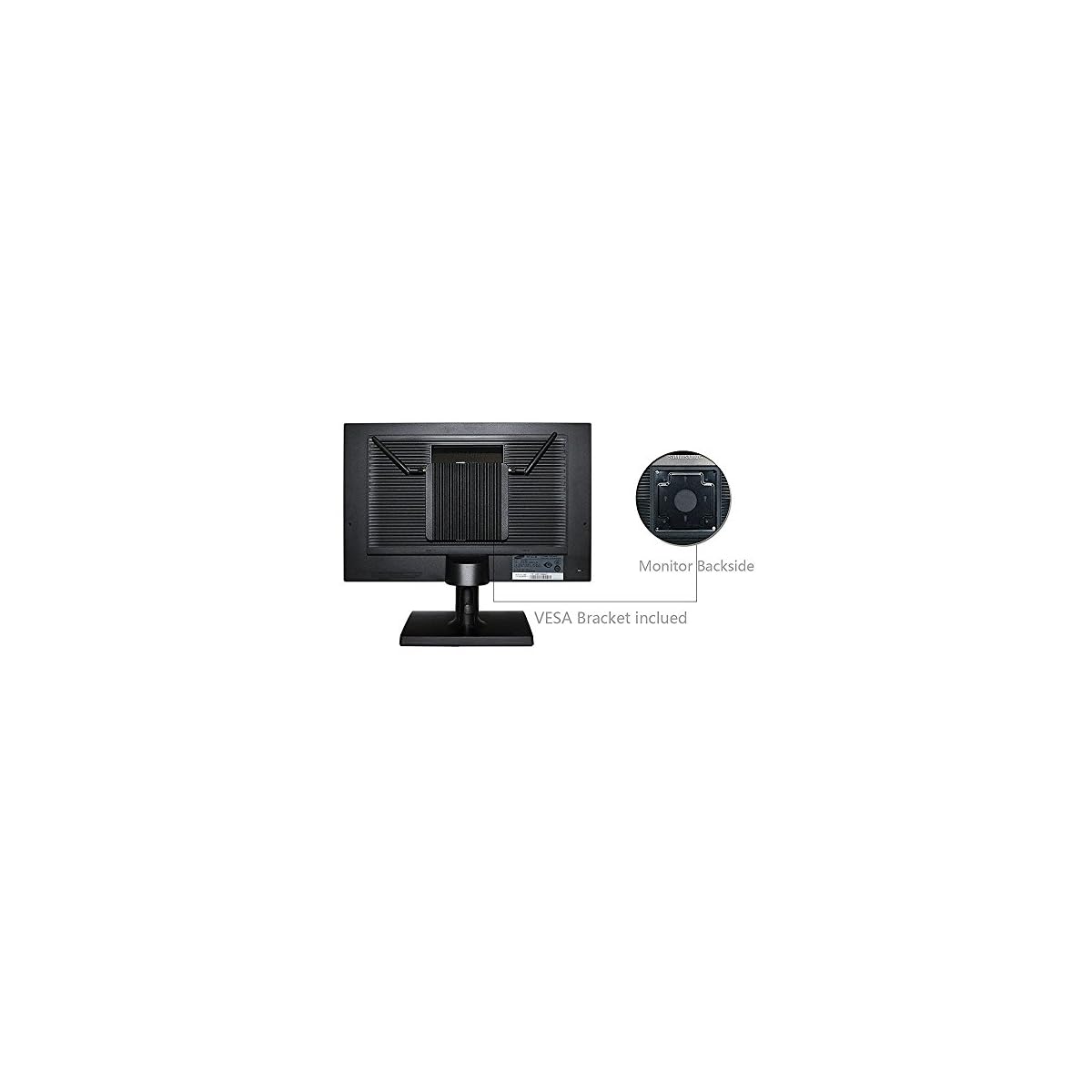

1 x VESA bracket
Be sure that this fits by entering your model number.
Onboard Intel Core i3-3217U Processor (3M Cache, 1.80 GHz) Dual core,4 Threads ,compact and silent. Solid aluminum chassis. Gigabit speeds on all 2 LAN ports
Configuration:8G DDR3 Ram 64G Msata SSD WIFI(2*Antennas)

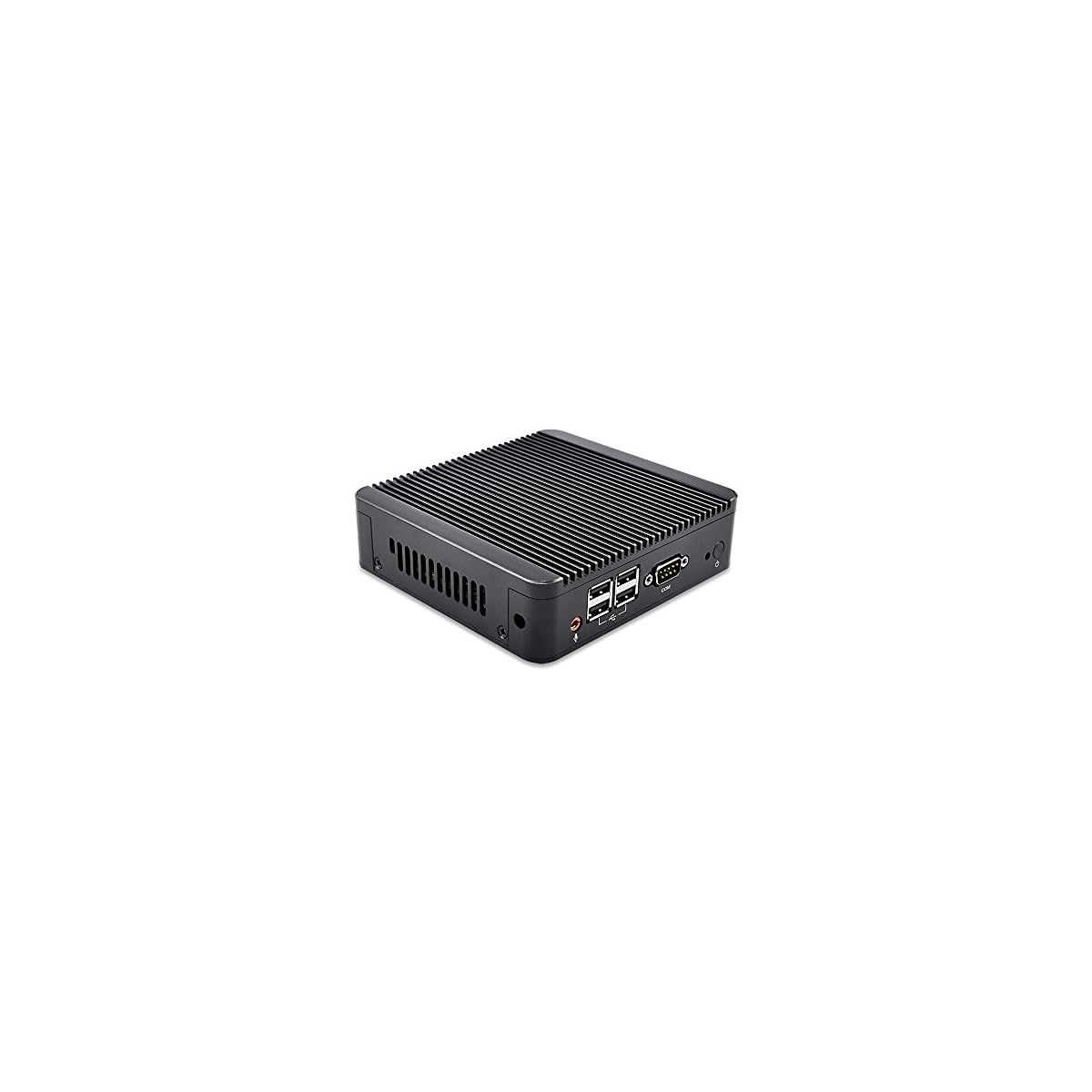

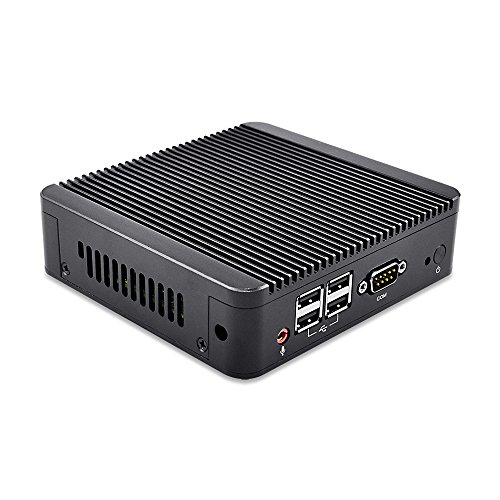

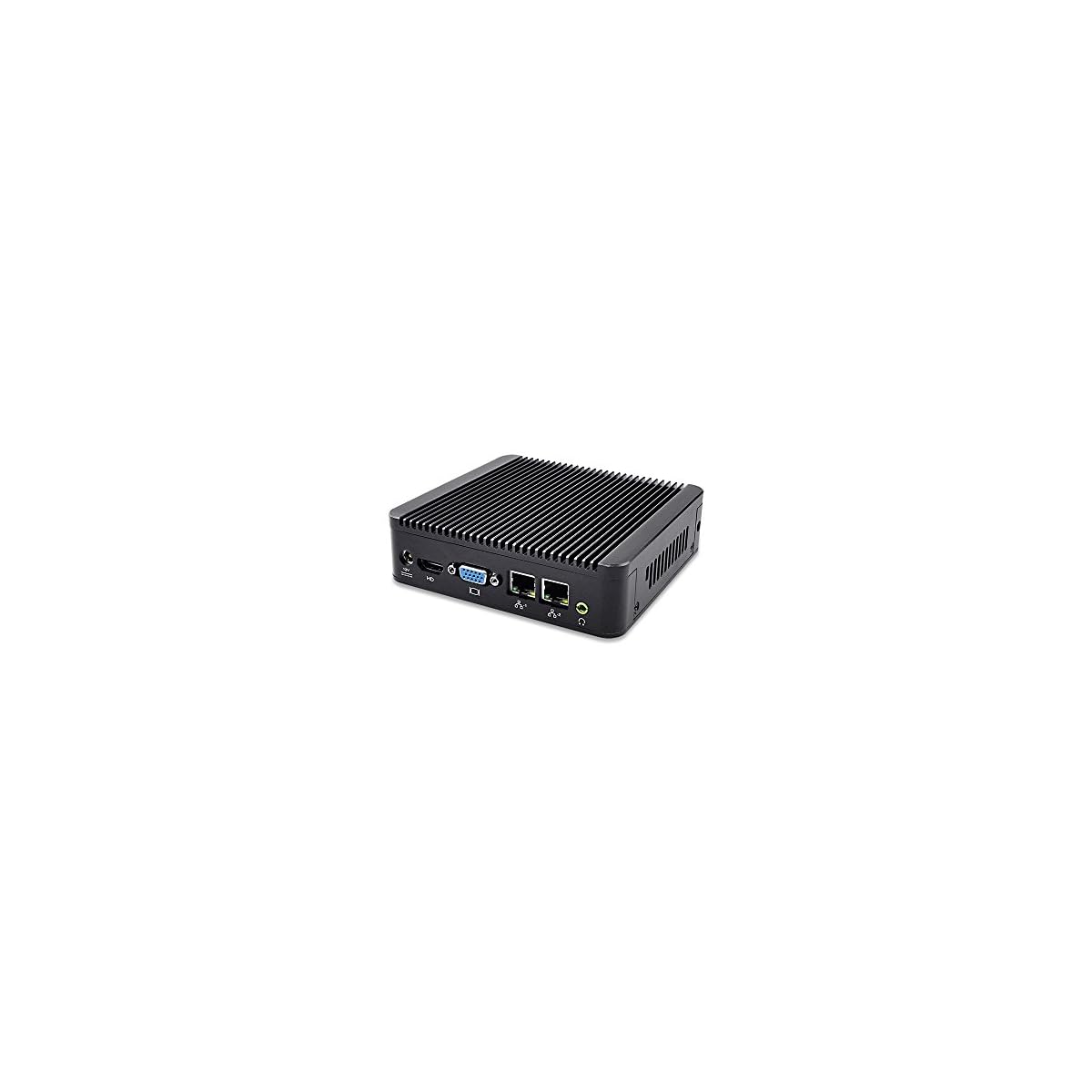

I/O Ports:1*HDMI,1*VGA, 2*Lan Ports , 4*USB2.0, 1*COM Ports,DC 12V
Default:Unactivated Windows 7 (No License). Improve pfSense, Windows 7 / 8 OS & Linux OS.(FREE ask to switch OS)
Applications:HD media player,network media player,High-definition media center PC,HTPC,Industrial PC
