Image Sensor:1/3″ Sony Effio-E solution CCD;
Resolution:600TVL;
Lens:3.6mm Board Lens;
LED:24PCS;
IR Distance:20m

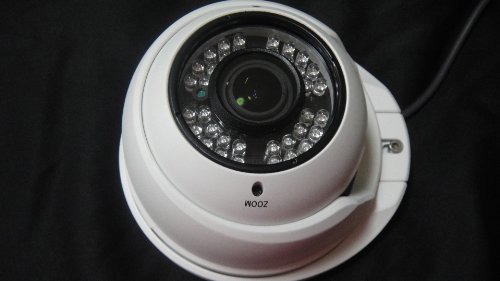

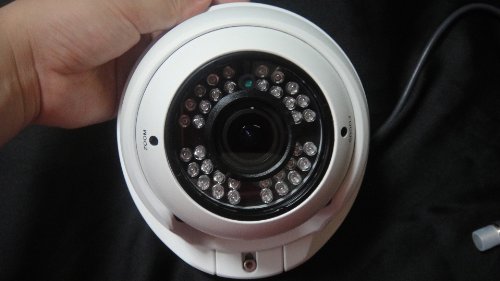

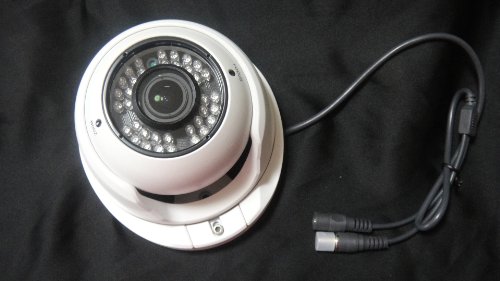

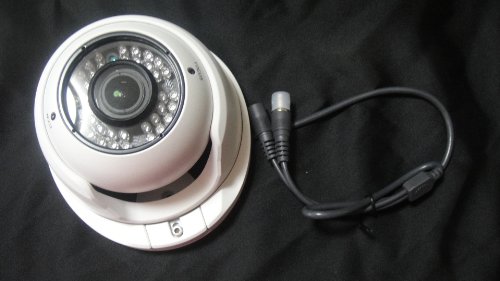

Other:2.5″ Metal IR Dome Camera.
Power supply: DC 12V/1A (No power included)
Dimensions: 100* 100*90mm
Sepecifications:
Horizontal Resolution: 600TVL
Pick-up Device:1/3” SONY CCD
Scanning system: PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Picture Element: PAL:752(H)×582(V),NTSC:768(H)×494(V)
TV System: PAL
Minimum Illumination:IR ON 0 lux
S/N Ratio:More than 48dB
Auto Electronic Shutter:PAL:1/50s-1/100.000s
Gamma Characteristic:0.45
Auto Gain Control:Auto
Auto White Balance:Auto
Back Light Compensation:Auto
Synchronous System:Internal Synchronization
Lens Mount:Standard 3.6mm
Video Output:1.0vp-p.75Ω,BNG Connector
IR Distance:20 Meters
Current Consumption:90mA(IR ON MAX 470mA)
Temperatur:-30 ~ +50 C
Material:Metal
Note:
You can use the TV set , computer monitors or professional CCTV monitors to display the pictures .
But , it is better to use a professional CCTV monitors than the TV set or computer monitors .It will give you the best color , HD visions.

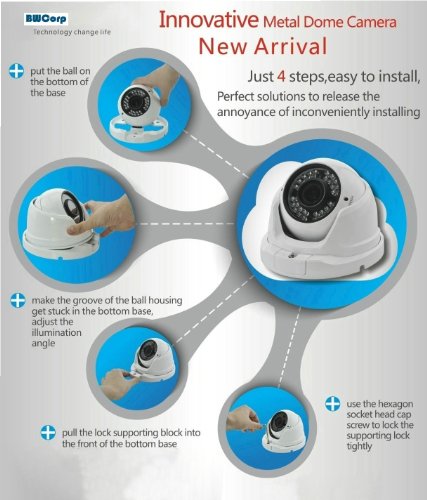

Special design, just 4 steps, easy to install, please see the steps
1. Put the ball on the bottom of the base.
2. Make the groove of the ball housing get stuck in the bottom base, adjust the illumination angle.
3. Pull the lock supporting block into the front of the bottom base.
4. Use the hexagon socket head cap screw to lock the supporting lock tightly.
Make sure this fits by entering your model number.
600 TVL Sony CCD
Lens:3.6mm
Innovative metal dome camera housing
IR Distance:10-15m Night vision.
Just 4 steps, easy to install, and it is a perfect solution to release the annoyance of inconveniently installing
